VEKA SOFTLINE SWING
PRODUCT TEMPORARILYDISCONTINUED.
Get in touch with our sales representative to ask for an alternative for this product.

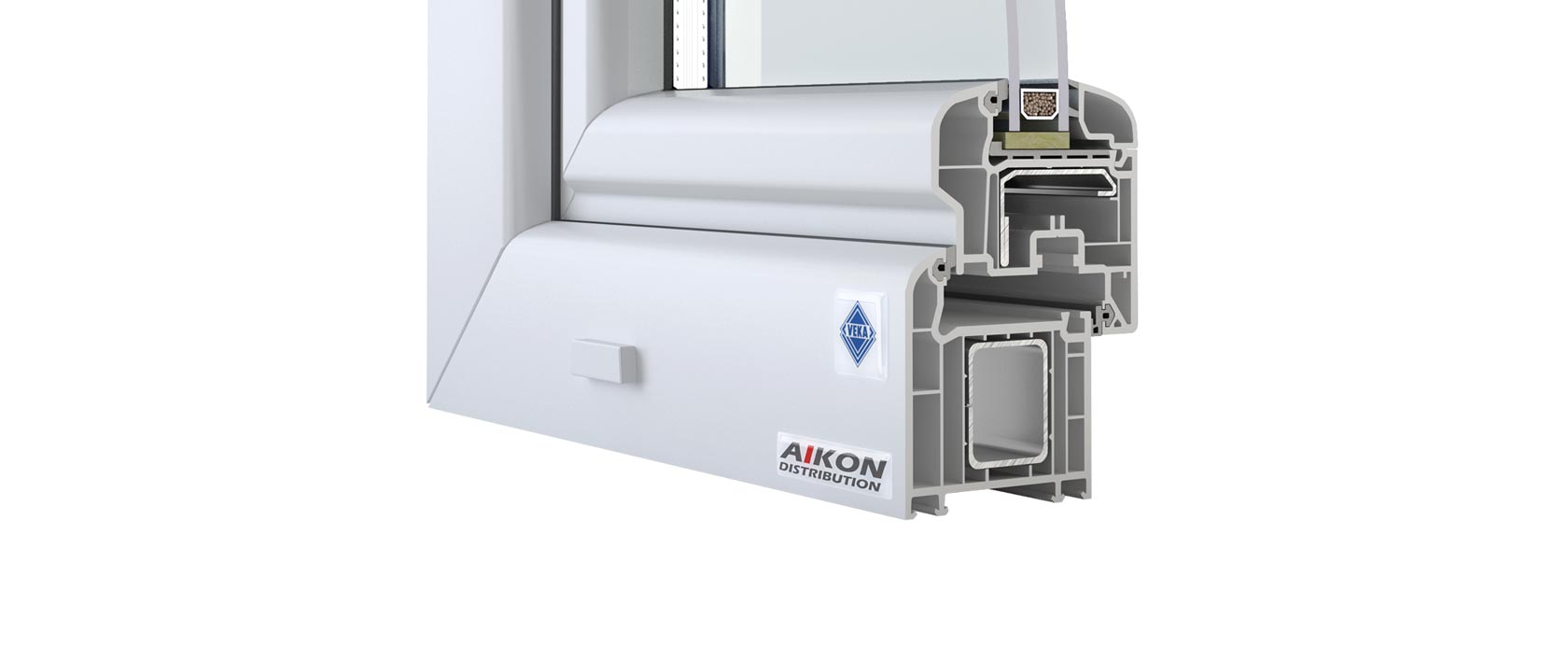

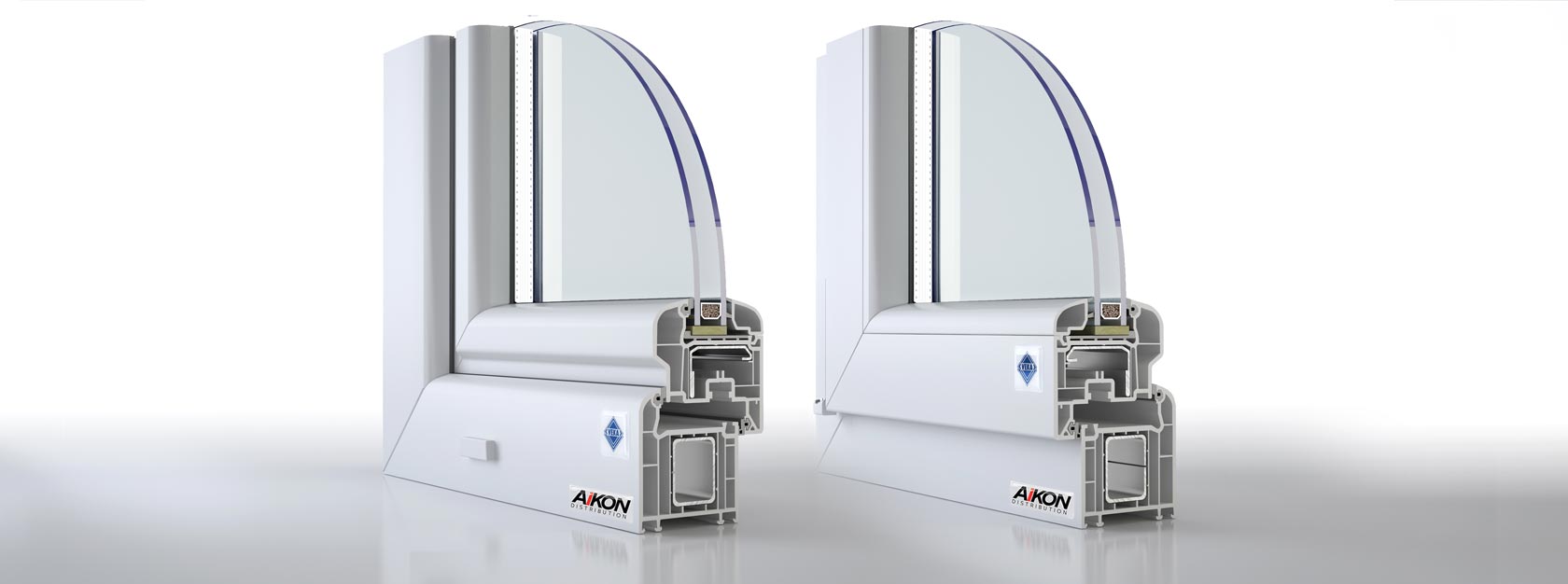

A classic, five-chamber window profile with a good technical performance offered at competitive price. Softline Swing offers semi-flushed, rounded edges sash that corresponds well with the frame. This adds an interesting shape with soft and harmonious lines characteristic for Softline Oval windows.
VEKA uPVC windows - class A profiles
All VEKA window profiles are classified according to PN-EN 12608 norm as the highest Class A. This classification confirms the thickness of the outer wall of the profiles of 3 mm (with a tolerance of 0.2 mm). Class A profiles perfectly protect against heat loss and noise and also increase the stability and durability of windows. According to the studies class A profile corners are 10-20% more resistant to damage.
A very good performance of the Veka Softline profile
Thick walls of the profile, robust, double rebate seal and possibility of applying glazing units with a thickness of 24 to 42 mm without a need for additional profiles provide optimum sound and thermal insulation and protect against adverse weather conditions.
Solidity and security
Galvanized steel reinforcements with a thickness of 1.5-3 mm provide excellent stability of the windows and protection against burglary. High quality window hardware and deep mounting of glazing unit ensures that windows are extremely robust and resistant to weather and mechanical damage.
Elegant and functional windows
Classic shape of the profile with significantly rounded edges of the frame and sash gives Softline Oval windows harmonious and elegant appearance. Easy water drainage is faciliated by 15 degrees steepness of the sash edge.Wide range of colours, availability of smooth and wood-like veneers and a wide range of accessories allow windows to have personal touch. Light gray, hardly visible gaskets match well with classic look of the window.
Windows with arches, triangular windows, trapezoids, circles
The Veka system allows the making of windows in unusual shapes. We have experience in the production of windows with arches and triangular, trapezoidal and round windows.
Veka windows - competitive price
To manufacture our Veka windows we work with carefully selected polish manufacturers. This ensures all our Veka windows are of the highest quality and offered at competitive price.
uPVC made-to-measure windows
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
Images are for reference purposes only.
Installation depth
70mm
Number of chambers
5 chambers
Heat transfer coefficient
Uf = 1,4 W/m2*K
Profile class
A
Weather stripping
Double external with EPDM rubber, grey/black
Available pane fixations thicknesses
24 mm - 42 mm
Standard glazing
4/16Ar/4 (Rw=31dB, Lt=80%, g=63%)
Standard handle
Hoppe Secustic
Steel thickness
1,5 - 3,0 mm (enclosed in a frame)
Dyed profile core for 2s colors
Yes: brown or caramel core
Warranty
5 years for the whole window
Certificates
CE
Order processing time
from 4 weeks
Additional parameters
Veka Softline renovation frames
Download technical drawings
Download our catalogue
PRODUCT TEMPORARILYDISCONTINUED.
Get in touch with our sales representative to ask for an alternative for this product.
A classic, five-chamber window profile with a good technical performance offered at competitive price. Softline Swing offers semi-flushed, rounded edges sash that corresponds well with the frame. This adds an interesting shape with soft and harmonious lines characteristic for Softline Oval windows.
VEKA uPVC windows - class A profiles
All VEKA window profiles are classified according to PN-EN 12608 norm as the highest Class A. This classification confirms the thickness of the outer wall of the profiles of 3 mm (with a tolerance of 0.2 mm). Class A profiles perfectly protect against heat loss and noise and also increase the stability and durability of windows. According to the studies class A profile corners are 10-20% more resistant to damage.
A very good performance of the Veka Softline profile
Thick walls of the profile, robust, double rebate seal and possibility of applying glazing units with a thickness of 24 to 42 mm without a need for additional profiles provide optimum sound and thermal insulation and protect against adverse weather conditions.
Solidity and security
Galvanized steel reinforcements with a thickness of 1.5-3 mm provide excellent stability of the windows and protection against burglary. High quality window hardware and deep mounting of glazing unit ensures that windows are extremely robust and resistant to weather and mechanical damage.
Elegant and functional windows
Classic shape of the profile with significantly rounded edges of the frame and sash gives Softline Oval windows harmonious and elegant appearance. Easy water drainage is faciliated by 15 degrees steepness of the sash edge.Wide range of colours, availability of smooth and wood-like veneers and a wide range of accessories allow windows to have personal touch. Light gray, hardly visible gaskets match well with classic look of the window.
Windows with arches, triangular windows, trapezoids, circles
The Veka system allows the making of windows in unusual shapes. We have experience in the production of windows with arches and triangular, trapezoidal and round windows.
Veka windows - competitive price
To manufacture our Veka windows we work with carefully selected polish manufacturers. This ensures all our Veka windows are of the highest quality and offered at competitive price.
uPVC made-to-measure windows
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
Images are for reference purposes only.
| Installation depth | 70mm |
| Number of chambers | 5 chambers |
| Heat transfer coefficient | Uf = 1,4 W/m2*K |
| Profile class | A |
| Weather stripping | Double external with EPDM rubber, grey/black |
| Available pane fixations thicknesses | 24 mm - 42 mm |
| Standard glazing | 4/16Ar/4 (Rw=31dB, Lt=80%, g=63%) |
| Standard handle | Hoppe Secustic |
| Steel thickness | 1,5 - 3,0 mm (enclosed in a frame) |
| Dyed profile core for 2s colors | Yes: brown or caramel core |
| Warranty | 5 years for the whole window |
| Certificates | CE |
| Order processing time | from 4 weeks |
Additional parameters
Veka Softline renovation frames
Download technical drawings
Download our catalogue
