VEKA EFFECTLINE
PRODUCT DISCONTINUED.
Get in touch with our sales representative to ask for an alternative for this product.
Veka Effectline represents classic Veka window profile of elegant shape, good technical performance offered at competitive price.
VEKA uPVC windows - class A profiles
All VEKA window profiles are classified according to PN-EN 12608 norm as the highest Class A. This classification confirms the thickness of the outer wall of the profiles of 3 mm (with a tolerance of 0.2 mm). Class A profiles perfectly protect against heat loss and noise and also increase the stability and durability of windows. According to the studies class A profile corners are 10-20% more resistant to damage.
Veka Effectline - an optimum window
The simple shape of the flush glazing beads and smooth surface of the profile allow easy cleaning and maintenance of the windows. Additionally the lowered frame profile ensures optimum illumination of the room.
Please notice: The product is only available in white.
Veka windows - competitive price
To manufacture our Veka windows we work with carefully selected polish manufacturers. This ensures all our Veka windows are of the highest quality and offered at competitive price.
uPVC made-to-measure windows
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window. In our offer you will also find sliding doors.

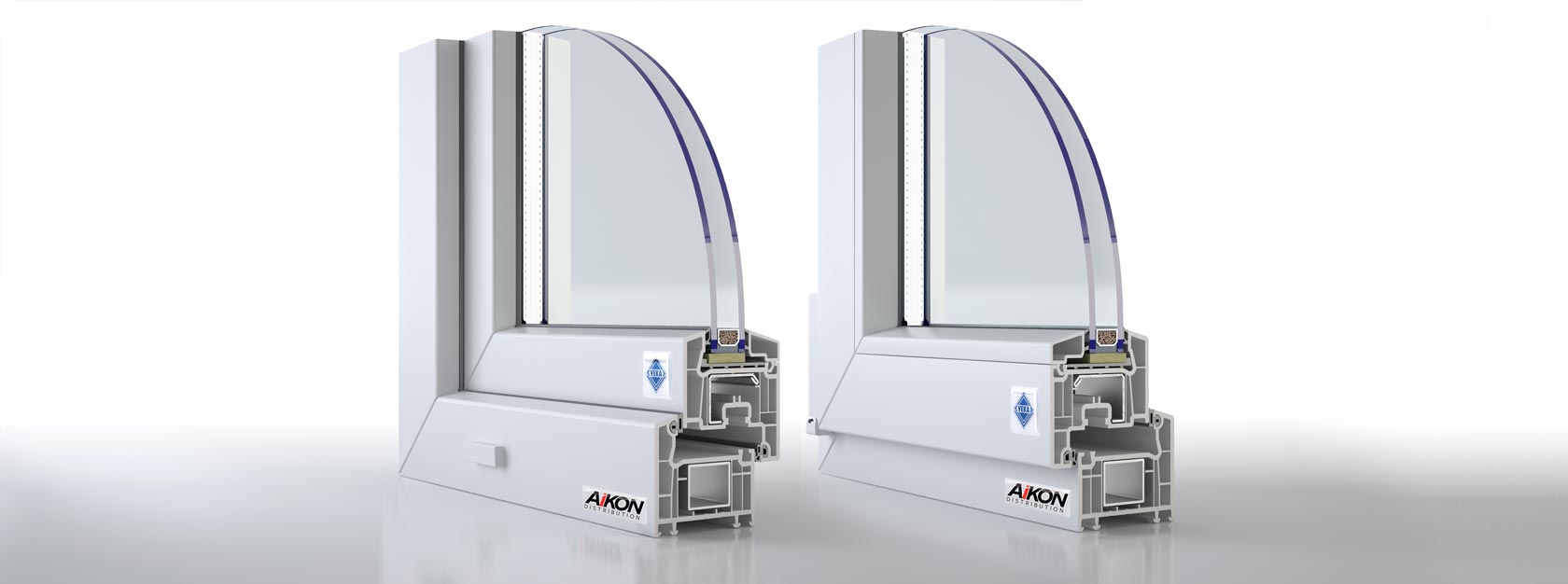

Images are for reference purposes only.
Installation depth
70mm
Number of chambers
5 chambers
Heat transfer coefficient
Uf = 1,3 W/m2*K
Profile class
A
Weather stripping
Double external with EPDM rubber, grey/black
Available pane fixations thicknesses
24 mm - 42 mm
Standard glazing
4/16Ar/4 (Rw=31dB, Lt=80%, g=63%)
Standard handle
Hoppe Secustic
Steel thickness
1,5 - 2,0 mm (enclosed in a frame)
Dyed profile core for 2s colors
Product available only in white.
Warranty
5 years for the whole window
Certificates
CE
Order processing time
from 4 weeks
Additional parameters
Download technical drawings
Download our catalogue
PRODUCT DISCONTINUED.
Get in touch with our sales representative to ask for an alternative for this product.
Veka Effectline represents classic Veka window profile of elegant shape, good technical performance offered at competitive price.
VEKA uPVC windows - class A profiles
All VEKA window profiles are classified according to PN-EN 12608 norm as the highest Class A. This classification confirms the thickness of the outer wall of the profiles of 3 mm (with a tolerance of 0.2 mm). Class A profiles perfectly protect against heat loss and noise and also increase the stability and durability of windows. According to the studies class A profile corners are 10-20% more resistant to damage.
Veka Effectline - an optimum window
The simple shape of the flush glazing beads and smooth surface of the profile allow easy cleaning and maintenance of the windows. Additionally the lowered frame profile ensures optimum illumination of the room.
Please notice: The product is only available in white.
Veka windows - competitive price
To manufacture our Veka windows we work with carefully selected polish manufacturers. This ensures all our Veka windows are of the highest quality and offered at competitive price.
uPVC made-to-measure windows
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window. In our offer you will also find sliding doors.
Images are for reference purposes only.
| Installation depth | 70mm |
| Number of chambers | 5 chambers |
| Heat transfer coefficient | Uf = 1,3 W/m2*K |
| Profile class | A |
| Weather stripping | Double external with EPDM rubber, grey/black |
| Available pane fixations thicknesses | 24 mm - 42 mm |
| Standard glazing | 4/16Ar/4 (Rw=31dB, Lt=80%, g=63%) |
| Standard handle | Hoppe Secustic |
| Steel thickness | 1,5 - 2,0 mm (enclosed in a frame) |
| Dyed profile core for 2s colors | Product available only in white. |
| Warranty | 5 years for the whole window |
| Certificates | CE |
| Order processing time | from 4 weeks |
Additional parameters
Download technical drawings
Download our catalogue
