VEKA SOFTLINE 76 AD
Class A profile - VEKA Softline 76 AD PVC windows
According to EN 12608, all VEKA brand window profiles are rated as Class A profiles, which is the highest level of quality. Class A profiles are distinguished by their excellent protection against heat loss and noise, as well as providing greater stability and strength to the windows. The system supplier guarantees that the corners of A-class profiles are 10 to 20 per cent more resistant to damage.
Veka Softline 76 AD - PVC energy-saving windows

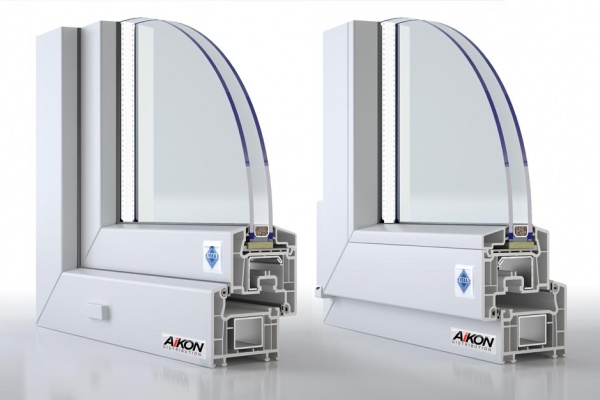

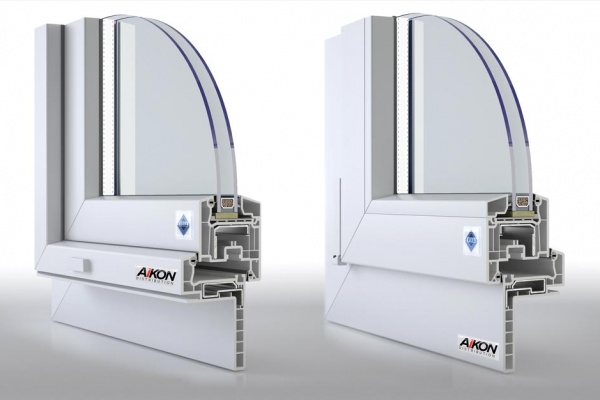

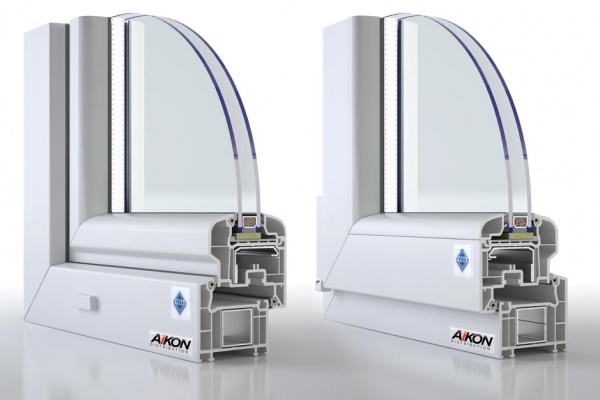

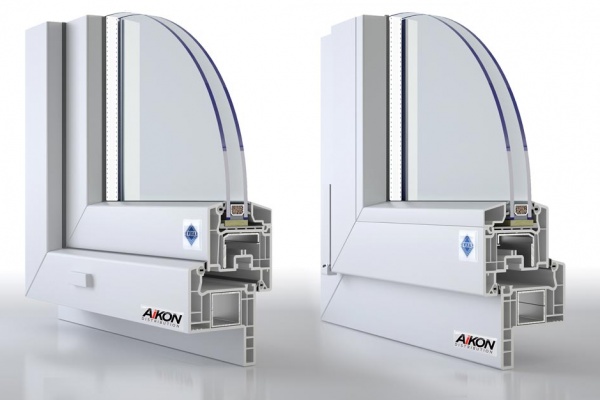

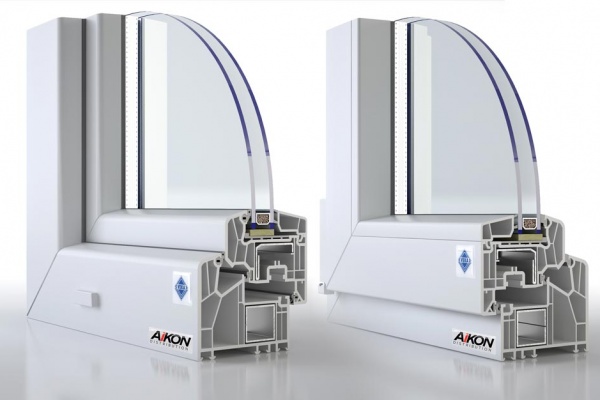

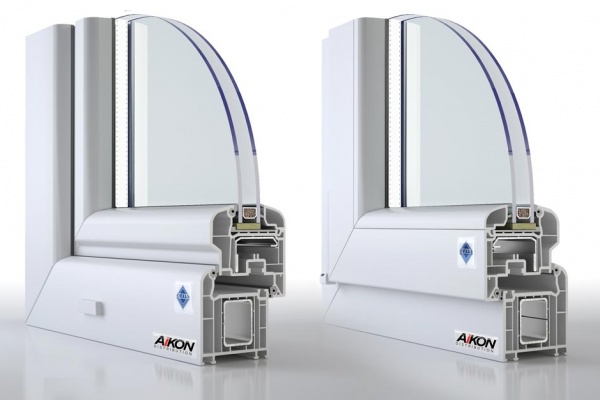

Veka Softline 76 AD profiles meet the highest quality standards in accordance with the PN-EN 12608 standard. They have a closed external profile thickness of 3 mm, with a maximum deviation of just +/- 0.2 mm. They feature 5 chambers in the frame profile and 5 chambers in the sash profile, with a frame and sash assembly height of 122 mm, although this can be adjusted to suit specific needs.

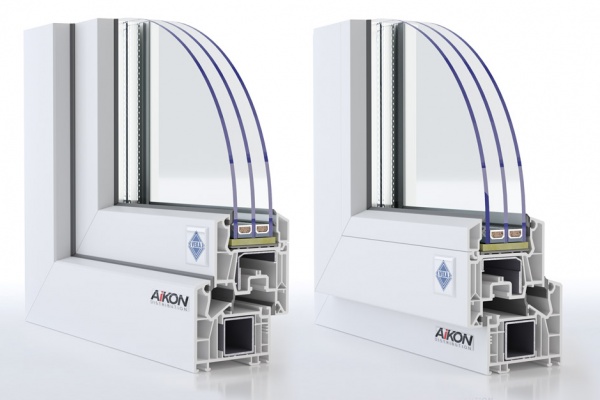

Veka Softline 76 AD windows can be fitted with double and triple glazing from 18 to 48 mm thick to improve thermal insulation and increase burglary resistance. Thanks to the external gasket system, they provide high thermal and acoustic insulation. In addition, they have steel reinforcement with a minimum thickness of 1.5 mm, which ensures adequate rigidity, durability and safety of use, as well as enabling fittings and additional profiles to be fixed in steel.
Safety and excellent quality of PVC windows
The safety of users is a priority in the production of Veka Softline 76 AD windows. These profiles are characterised by excellent burglary resistance and structural stability, providing peace of mind and security for homeowners. In addition, the high quality of the materials used in the production ensures long-lasting functionality and aesthetic appearance of the windows.
Veka Softline 76 AD in non-standard shapes
On special request, Veka Softline 76 AD windows can be customised into different sizes and shapes - triangle, trapezoid or circle. This allows you to enjoy excellent technical performance and an aesthetically pleasing finish even in unusual window arrangements.
Made to measure uPVC windows at Aikon Distribution
Aikon Distribution offers a wide range of uPVC windows, including the renowned Veka Softline 76 AD profiles. With our expert service and ability to customise your windows to suit your individual needs, guaranteeing your satisfaction.
Be sure to also check Veka doors available at our offer.
Installation depth
76mm
Number of chambers
5 chambers
Heat transfer coefficient
Uf = 1,2 W/m2*K
Profile class
A
Number of seals
2
Available pane fixations thicknesses
18 mm - 48 mm
Standard glazing
4/16Ar/4
Standard handle
Hoppe Secustic
Steel thickness
1,5 mm
Warranty
5 years for the whole window
Certificates
CE
Order processing time
from 4 weeks
ADDITIONAL PARAMETERS
DOWNLOAD TECHNICAL DRAWINGS
DOWNLOAD OUR CATALOGUE
Class A profile - VEKA Softline 76 AD PVC windows
According to EN 12608, all VEKA brand window profiles are rated as Class A profiles, which is the highest level of quality. Class A profiles are distinguished by their excellent protection against heat loss and noise, as well as providing greater stability and strength to the windows. The system supplier guarantees that the corners of A-class profiles are 10 to 20 per cent more resistant to damage.
Veka Softline 76 AD - PVC energy-saving windows
Veka Softline 76 AD profiles meet the highest quality standards in accordance with the PN-EN 12608 standard. They have a closed external profile thickness of 3 mm, with a maximum deviation of just +/- 0.2 mm. They feature 5 chambers in the frame profile and 5 chambers in the sash profile, with a frame and sash assembly height of 122 mm, although this can be adjusted to suit specific needs.
Veka Softline 76 AD windows can be fitted with double and triple glazing from 18 to 48 mm thick to improve thermal insulation and increase burglary resistance. Thanks to the external gasket system, they provide high thermal and acoustic insulation. In addition, they have steel reinforcement with a minimum thickness of 1.5 mm, which ensures adequate rigidity, durability and safety of use, as well as enabling fittings and additional profiles to be fixed in steel.
Safety and excellent quality of PVC windows
The safety of users is a priority in the production of Veka Softline 76 AD windows. These profiles are characterised by excellent burglary resistance and structural stability, providing peace of mind and security for homeowners. In addition, the high quality of the materials used in the production ensures long-lasting functionality and aesthetic appearance of the windows.
Veka Softline 76 AD in non-standard shapes
On special request, Veka Softline 76 AD windows can be customised into different sizes and shapes - triangle, trapezoid or circle. This allows you to enjoy excellent technical performance and an aesthetically pleasing finish even in unusual window arrangements.
Made to measure uPVC windows at Aikon Distribution
Aikon Distribution offers a wide range of uPVC windows, including the renowned Veka Softline 76 AD profiles. With our expert service and ability to customise your windows to suit your individual needs, guaranteeing your satisfaction.
Be sure to also check Veka doors available at our offer.
| Installation depth | 76mm |
| Number of chambers | 5 chambers |
| Heat transfer coefficient | Uf = 1,2 W/m2*K |
| Profile class | A |
| Number of seals | 2 |
| Available pane fixations thicknesses | 18 mm - 48 mm |
| Standard glazing | 4/16Ar/4 |
| Standard handle | Hoppe Secustic |
| Steel thickness | 1,5 mm |
| Warranty | 5 years for the whole window |
| Certificates | CE |
| Order processing time | from 4 weeks |
