SCHÜCO SLIDING DOOR S74/CORONA 74

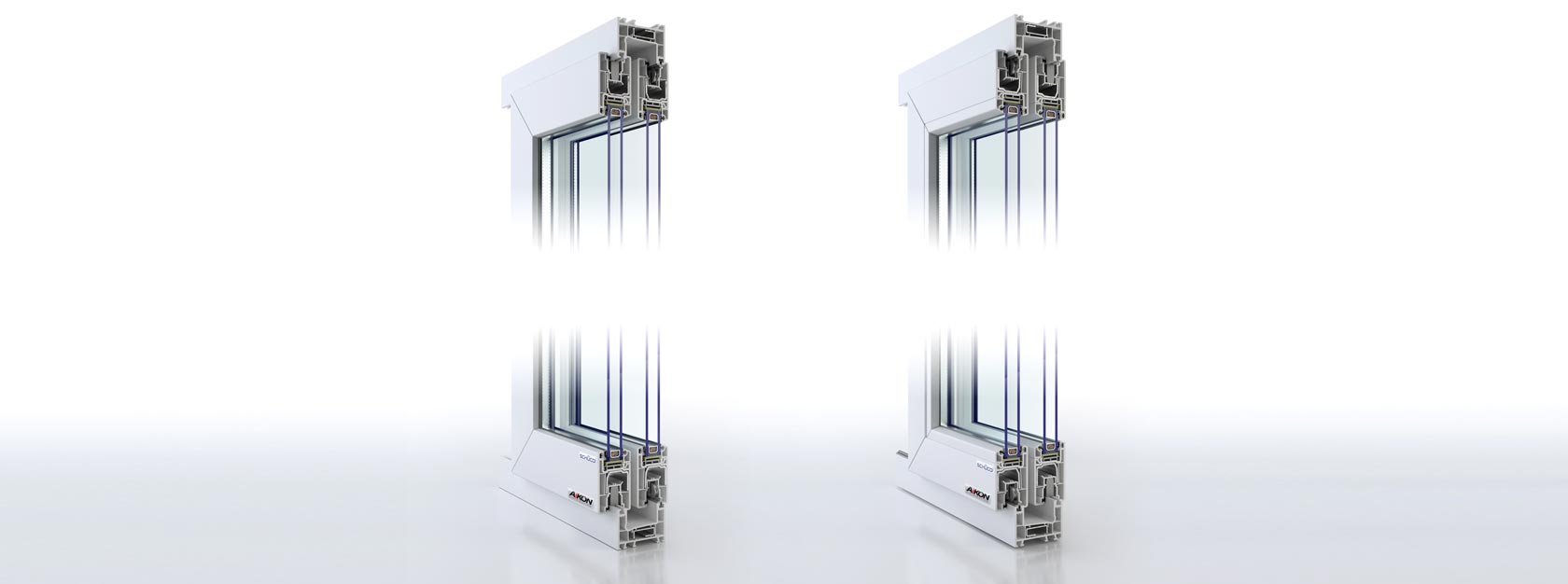

Within Schüco range we offer S74/CORONA 74 – modern and functional sliding door system. As oppose to traditional side-hung doors, sliding sashes open along each other allowing the system to be used in less spacious room. Solid S74 profile allows creating large glazed surfaces.
Sliding doors for balconies, terraces and winter gardens

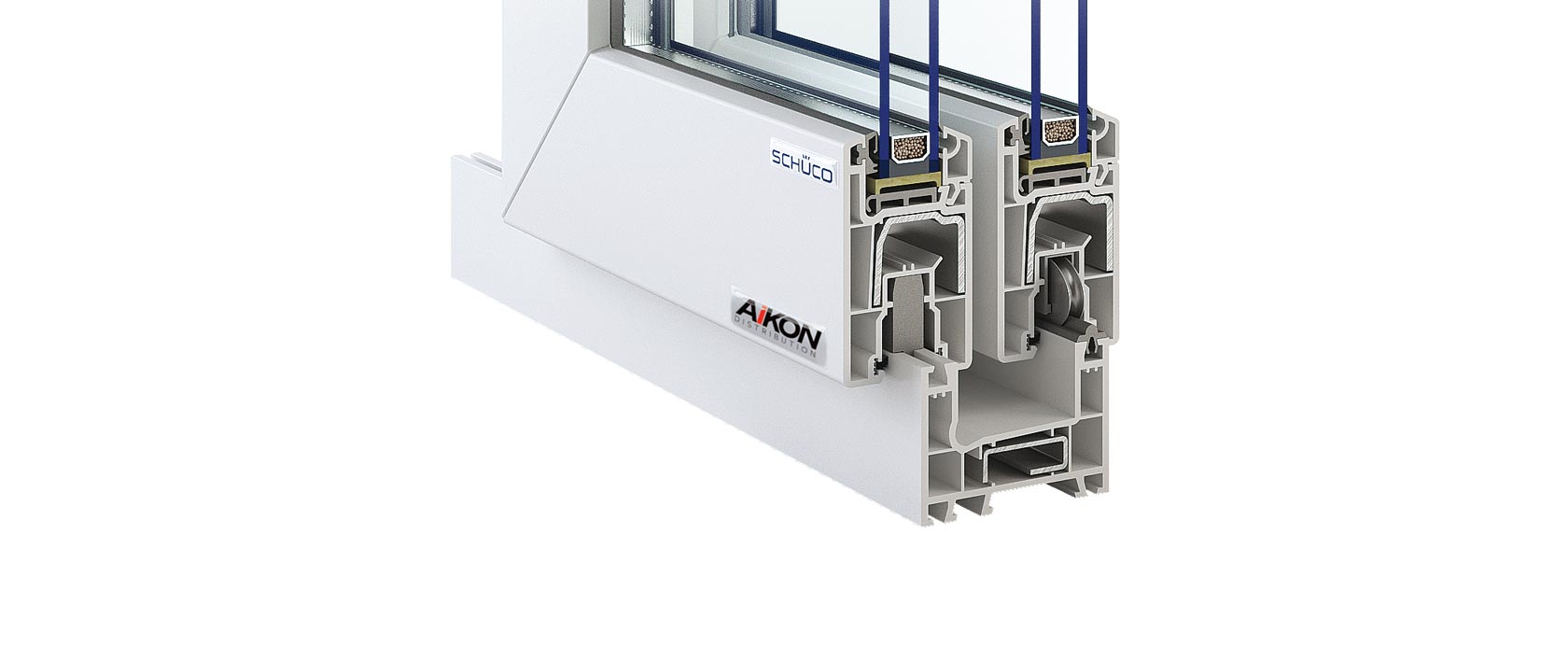

S74 System allows convenient movement of the sashes parallel to each other and can consist two or more rails. Double-glass sashes are sealed with brush seals. Due to larger installation depth, high weather resistance and good thermal and sound insulation it is recommended to fit the S74 System on the outside of the building. Frequently sliding doors are applied as balcony, terrace and winter garden doors. As oppose to traditional side-hung doors, sliding sashes open along each other allowing the system to be used in less spacious room.
Sliding doors with good thermal insulation
Thermally insulated thresholds and innovative sealing system of S74 sliding doors provide excellent protection against cold.
uPVC made-to-measure doors
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one door.
Images are for reference purposes only.
Installation depth
74mm
Number of chambers
3 chambers
Heat transfer coefficient
Uf = 1,8 W/m2*K
Profile class
B
Weather stripping
Brush weather seals
Available pane fixations thicknesses
24 mm - 40 mm
Standard glazing
4/16Ar/4 (Rw=29dB, Lt=80%, g=63%)
Standard handle
System handle
Steel thickness
1,5 - 2,0 mm (enclosed in a frame)
Dyed profile core for 2s colors
Yes: brown, white or anthracite core under the veneer
Warranty
5 years
Certificates
CE
Order processing time
from 5 weeks
Additional parameters
Download technical drawings
Download our catalogue
Within Schüco range we offer S74/CORONA 74 – modern and functional sliding door system. As oppose to traditional side-hung doors, sliding sashes open along each other allowing the system to be used in less spacious room. Solid S74 profile allows creating large glazed surfaces.
Sliding doors for balconies, terraces and winter gardens
S74 System allows convenient movement of the sashes parallel to each other and can consist two or more rails. Double-glass sashes are sealed with brush seals. Due to larger installation depth, high weather resistance and good thermal and sound insulation it is recommended to fit the S74 System on the outside of the building. Frequently sliding doors are applied as balcony, terrace and winter garden doors. As oppose to traditional side-hung doors, sliding sashes open along each other allowing the system to be used in less spacious room.
Sliding doors with good thermal insulation
Thermally insulated thresholds and innovative sealing system of S74 sliding doors provide excellent protection against cold.
uPVC made-to-measure doors
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one door.
Images are for reference purposes only.
| Installation depth | 74mm |
| Number of chambers | 3 chambers |
| Heat transfer coefficient | Uf = 1,8 W/m2*K |
| Profile class | B |
| Weather stripping | Brush weather seals |
| Available pane fixations thicknesses | 24 mm - 40 mm |
| Standard glazing | 4/16Ar/4 (Rw=29dB, Lt=80%, g=63%) |
| Standard handle | System handle |
| Steel thickness | 1,5 - 2,0 mm (enclosed in a frame) |
| Dyed profile core for 2s colors | Yes: brown, white or anthracite core under the veneer |
| Warranty | 5 years |
| Certificates | CE |
| Order processing time | from 5 weeks |
