SCHÜCO HST LIFT-AND-SLIDE DOOR/HS CT70 EASY SLIDE
HST Schuco lift-and-slide doors is an innovative and functional solution for homes, offices and industrial buildings. HST profiles, solution provided by Schüco, are dedicated to the construction of large-scale glass surfaces.
Schuco Lift-and-slide doors
HST system lift-and-slide door allows to open sashes that move independently along rail tracks. Lift-and-slide hardware - integrated with the door handle - ensures smooth movement of sashes along the rail. Double-glazed sashes are sealed with high-resistance EPDM rubber.
The advantages of the HST system
As oppose to traditional side-hung doors lift-and-slide sashes open along each other allowing the system to be used in less spacious room. HST Low threshold allows easy access when the door is open. Additionally the large glazed surface allows maximum illumination of the room. Compatibility of the lift-and-slide system with modern architectural trends is also considered as undoubted advantage.
Lift-and-slide doors with good thermal insulation

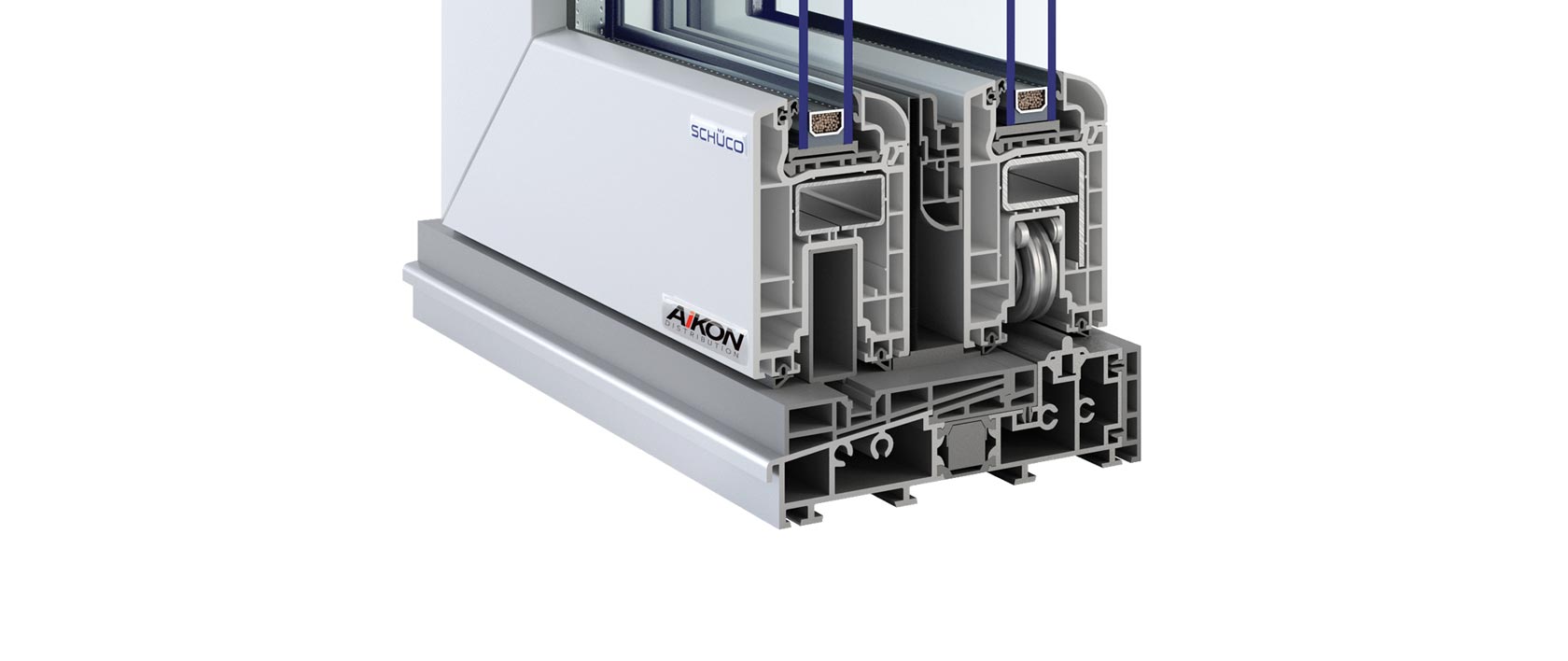

5-chamber profile, thermally insulated thresholds and innovative sealing system of the HST lift-and-slide doors effectively protect against cold.
uPVC made-to-measure sliding doors
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one door. In our offer you will also find Roller Shuters.
Images are for reference purposes only.
Installation depth
167mm
Number of chambers
5 chambers
Heat transfer coefficient
Uf = 1,9 W/m2*K
Profile class
B
Weather stripping
EPDM, grey/black
Available pane fixations thicknesses
24 mm - 40 mm
Standard glazing
4/16Ar/4 (Rw=29dB, Lt=80%, g=63%)
Standard handle
Siegenia
Steel thickness
Leaf 2mm; aluminum profile in a frame
Dyed profile core for 2s colors
Yes: brown, white or anthracite core under the veneer
Warranty
5 years for the whole window
Certificates
CE
Order processing time
from 5 weeks
Additional parameters
Download technical drawings
Download our catalogue
HST Schuco lift-and-slide doors is an innovative and functional solution for homes, offices and industrial buildings. HST profiles, solution provided by Schüco, are dedicated to the construction of large-scale glass surfaces.
Schuco Lift-and-slide doors
HST system lift-and-slide door allows to open sashes that move independently along rail tracks. Lift-and-slide hardware - integrated with the door handle - ensures smooth movement of sashes along the rail. Double-glazed sashes are sealed with high-resistance EPDM rubber.
The advantages of the HST system
As oppose to traditional side-hung doors lift-and-slide sashes open along each other allowing the system to be used in less spacious room. HST Low threshold allows easy access when the door is open. Additionally the large glazed surface allows maximum illumination of the room. Compatibility of the lift-and-slide system with modern architectural trends is also considered as undoubted advantage.
Lift-and-slide doors with good thermal insulation
5-chamber profile, thermally insulated thresholds and innovative sealing system of the HST lift-and-slide doors effectively protect against cold.
uPVC made-to-measure sliding doors
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one door. In our offer you will also find Roller Shuters.
Images are for reference purposes only.
| Installation depth | 167mm |
| Number of chambers | 5 chambers |
| Heat transfer coefficient | Uf = 1,9 W/m2*K |
| Profile class | B |
| Weather stripping | EPDM, grey/black |
| Available pane fixations thicknesses | 24 mm - 40 mm |
| Standard glazing | 4/16Ar/4 (Rw=29dB, Lt=80%, g=63%) |
| Standard handle | Siegenia |
| Steel thickness | Leaf 2mm; aluminum profile in a frame |
| Dyed profile core for 2s colors | Yes: brown, white or anthracite core under the veneer |
| Warranty | 5 years for the whole window |
| Certificates | CE |
| Order processing time | from 5 weeks |
Additional parameters
Download technical drawings
Download our catalogue
