SCHÜCO CT70 RENOVATION 30/38

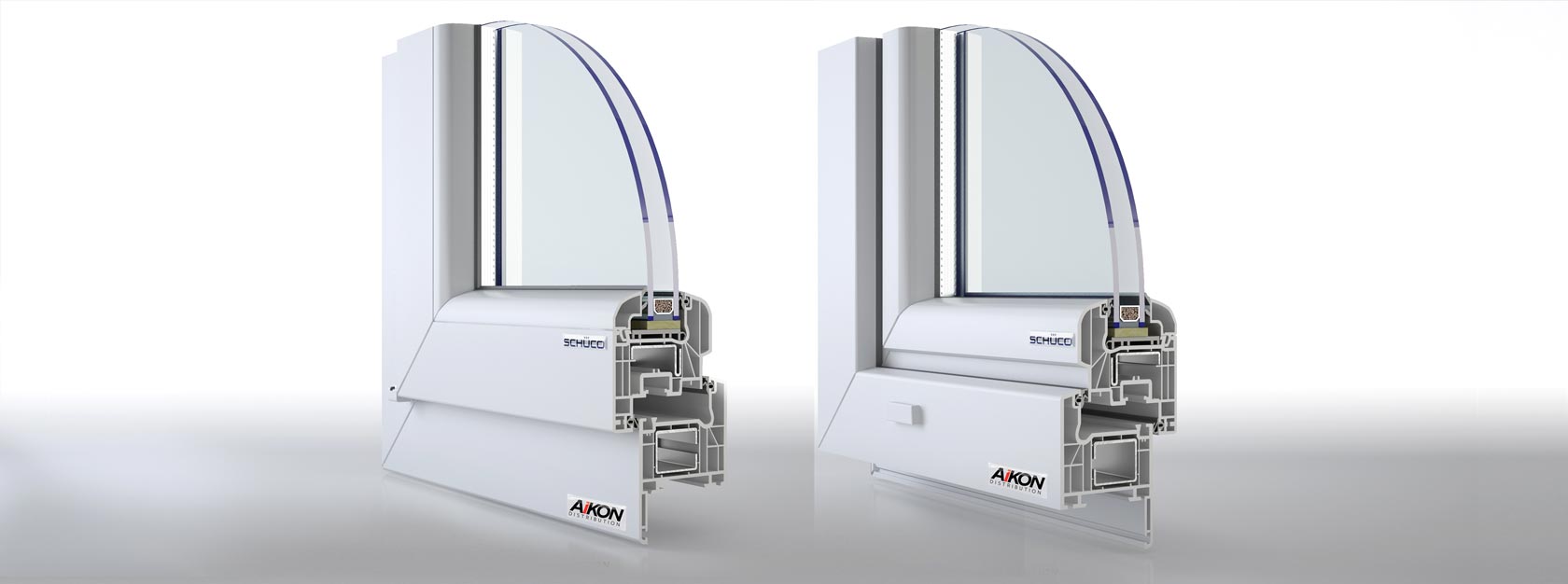

Corona CT70 renovation frames can be applied to every model of CT70 sash: Classic, Round and Cava.
Replacing old windows - fast installation, without damage to the building
Renovation windows - ideal solution for replacing old windows. Installation of renovation windows is quick and easy. It does not require a complete dismantling of the old jambs, making the walls and facade remain without any damage. This prevents from time-consuming and costly renovation. Simply remove the old sashes, posts and hardware. Jambs needing replacement do not have to be taken out. They will be completely covered with renovation fin from the inside. From the outside the old jamb is covered by made-to-measure trims.
Renovation frames for historic buildings
Non-invasive installation of a renovation window makes it the best and often the only solution to be used in historic buildings. It allows inserting a new window with high thermal and acoustic performance while minimizing the risk of damage to the construction components.

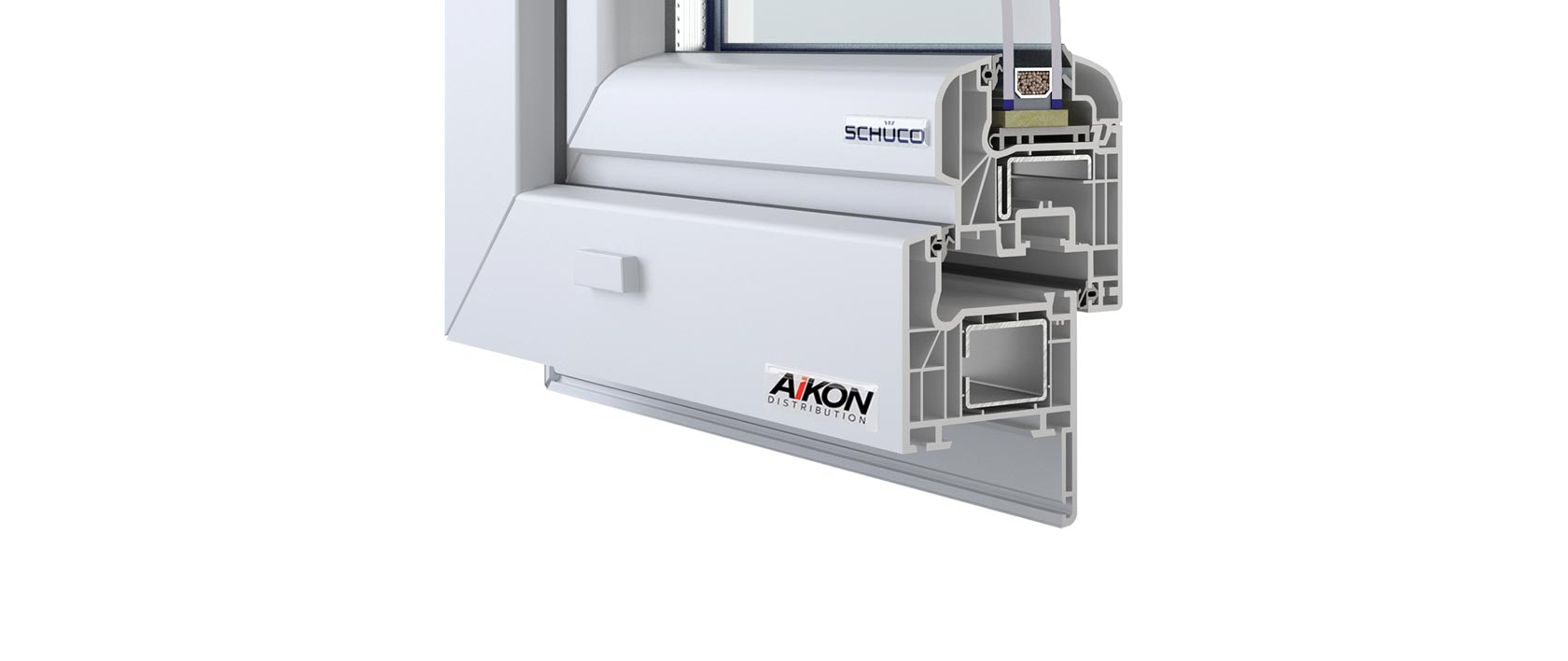

Renovation frames with lowered face of profile
Renovation windows feature lowered face of profile allowing optimal illumination of the room. Therefore installation of new frame over the old one and resulting reduction of the glazed surface of new window does not affect user experience.
uPVC made-to-measure windows
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
Images are for reference purposes only.
Installation depth
70mm
Number of chambers
5 chambers
Heat transfer coefficient
Uf = 1,3 W/m2*K
Profile class
B
Weather stripping
Double external with EPDM rubber, grey/black
Available pane fixations thicknesses
24 mm - 40 mm
Standard glazing
4/16Ar/4 (Rw=29dB, Lt=80%, g=63%)
Standard handle
Schüco Secoustic
Steel thickness
1,5 - 2,0 mm (enclosed in a frame)
Dyed profile core for 2s colors
Yes: brown, white or anthracite core under the veneer
Warranty
5 years*
Certificates
CE
Order processing time
from 5 weeks
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
Corona CT70 renovation frames can be applied to every model of CT70 sash: Classic, Round and Cava.
Replacing old windows - fast installation, without damage to the building
Renovation windows - ideal solution for replacing old windows. Installation of renovation windows is quick and easy. It does not require a complete dismantling of the old jambs, making the walls and facade remain without any damage. This prevents from time-consuming and costly renovation. Simply remove the old sashes, posts and hardware. Jambs needing replacement do not have to be taken out. They will be completely covered with renovation fin from the inside. From the outside the old jamb is covered by made-to-measure trims.
Renovation frames for historic buildings
Non-invasive installation of a renovation window makes it the best and often the only solution to be used in historic buildings. It allows inserting a new window with high thermal and acoustic performance while minimizing the risk of damage to the construction components.
Renovation frames with lowered face of profile
Renovation windows feature lowered face of profile allowing optimal illumination of the room. Therefore installation of new frame over the old one and resulting reduction of the glazed surface of new window does not affect user experience.
uPVC made-to-measure windows
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
Images are for reference purposes only.
| Installation depth | 70mm |
| Number of chambers | 5 chambers |
| Heat transfer coefficient | Uf = 1,3 W/m2*K |
| Profile class | B |
| Weather stripping | Double external with EPDM rubber, grey/black |
| Available pane fixations thicknesses | 24 mm - 40 mm |
| Standard glazing | 4/16Ar/4 (Rw=29dB, Lt=80%, g=63%) |
| Standard handle | Schüco Secoustic |
| Steel thickness | 1,5 - 2,0 mm (enclosed in a frame) |
| Dyed profile core for 2s colors | Yes: brown, white or anthracite core under the veneer |
| Warranty | 5 years* |
| Certificates | CE |
| Order processing time | from 5 weeks |
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
