Salamander BluEvolution 92

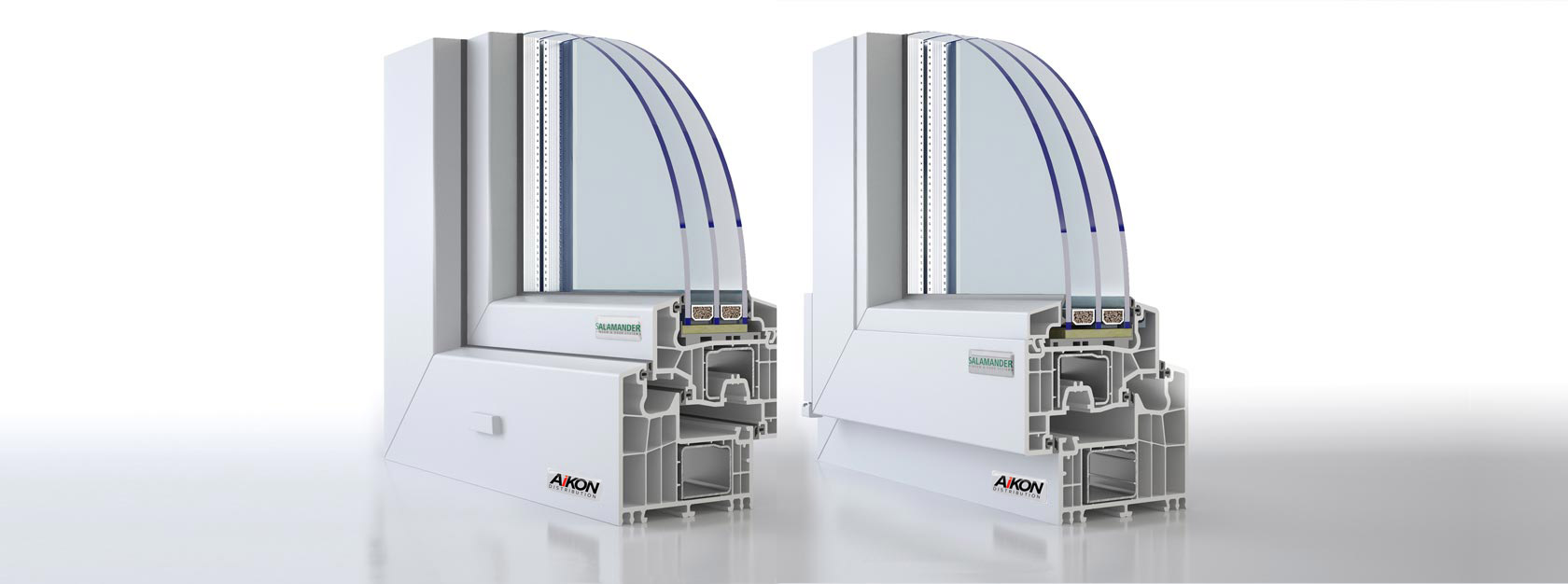

Salamander BluEvolution 92 UPVC window
Due to its outstanding heat insulation and energy efficiency this profile is dedicated for construction of ultra-low energy buildings. Six-chamber design, installation depth of 92 mm, triple gasket, as well as attractive design of the profile (118mm profile sightlines) guarantees unmatched protection against moisture, noise and heat loss.
Passive uPVC windows
Salamander BluEvolution 92 UPVC has been designed to cut heat losses and increase insulation of a building. The heat transfer coefficient of the BluEvolution 92 profile is Uf=1.0 W/m2K. This is possible due to the installation depth of 92 mm, six-chamber design of the profile, combination of triple gasket system and an option to use glazing units of up to 60mm thickness.
BluEvolution 92 window with a quadruple glazing unit
This profile is dedicated for the most demanding customers, as its heat transfer coefficient is as low as Ug = 0.4 W/m2*K. This solution enables outstanding cost-efficiency throughout the entire year, regardless of the weather – during summer period it will prevent the interior from the build-up of excess heat, while in the winter it will reduce heat loss. Passive window Salamander BluEvolution 92 with its quadruple glazing unit is an unmatched champion in terms of energy efficiency, thermal and sound insulation.
If you are interested in purchasing Salamander BluEvolution 92 windows - contact our sales representative.
Check also our other energy saving PVC windows.
Installation depth
92mm
Number of chambers
6 chambers
Heat transfer coefficient
Uf = 1,0 W/m2*K
Profile class
A
Weather stripping
Triple external with TPE, gray/black
Available pane fixations thicknesses
24 mm - 60 mm
Standard glazing
4/18Ar/4/18Ar/4 (Rw=33dB, Lt=72%, g=50%)
Standard handle
Hoppe Secustic
Steel thickness
1,5 - 2,0 mm
Dyed profile core for 2s colors
Yes: Brown, White, caramel
Warranty
5 years for the whole window
Certificates
CE, CEKAL (glazing)
Order processing time
from 2 weeks
Additional parameters
Download technical drawings
Download our catalogue
Salamander BluEvolution 92 UPVC window
Due to its outstanding heat insulation and energy efficiency this profile is dedicated for construction of ultra-low energy buildings. Six-chamber design, installation depth of 92 mm, triple gasket, as well as attractive design of the profile (118mm profile sightlines) guarantees unmatched protection against moisture, noise and heat loss.
Passive uPVC windows
Salamander BluEvolution 92 UPVC has been designed to cut heat losses and increase insulation of a building. The heat transfer coefficient of the BluEvolution 92 profile is Uf=1.0 W/m2K. This is possible due to the installation depth of 92 mm, six-chamber design of the profile, combination of triple gasket system and an option to use glazing units of up to 60mm thickness.
BluEvolution 92 window with a quadruple glazing unit
This profile is dedicated for the most demanding customers, as its heat transfer coefficient is as low as Ug = 0.4 W/m2*K. This solution enables outstanding cost-efficiency throughout the entire year, regardless of the weather – during summer period it will prevent the interior from the build-up of excess heat, while in the winter it will reduce heat loss. Passive window Salamander BluEvolution 92 with its quadruple glazing unit is an unmatched champion in terms of energy efficiency, thermal and sound insulation.
If you are interested in purchasing Salamander BluEvolution 92 windows - contact our sales representative.
Check also our other energy saving PVC windows.
| Installation depth | 92mm |
| Number of chambers | 6 chambers |
| Heat transfer coefficient | Uf = 1,0 W/m2*K |
| Profile class | A |
| Weather stripping |
Triple external with TPE, gray/black |
| Available pane fixations thicknesses | 24 mm - 60 mm |
| Standard glazing | 4/18Ar/4/18Ar/4 (Rw=33dB, Lt=72%, g=50%) |
| Standard handle | Hoppe Secustic |
| Steel thickness | 1,5 - 2,0 mm |
| Dyed profile core for 2s colors | Yes: Brown, White, caramel |
| Warranty | 5 years for the whole window |
| Certificates | CE, CEKAL (glazing) |
| Order processing time | from 2 weeks |
Additional parameters
Download technical drawings
Download our catalogue
