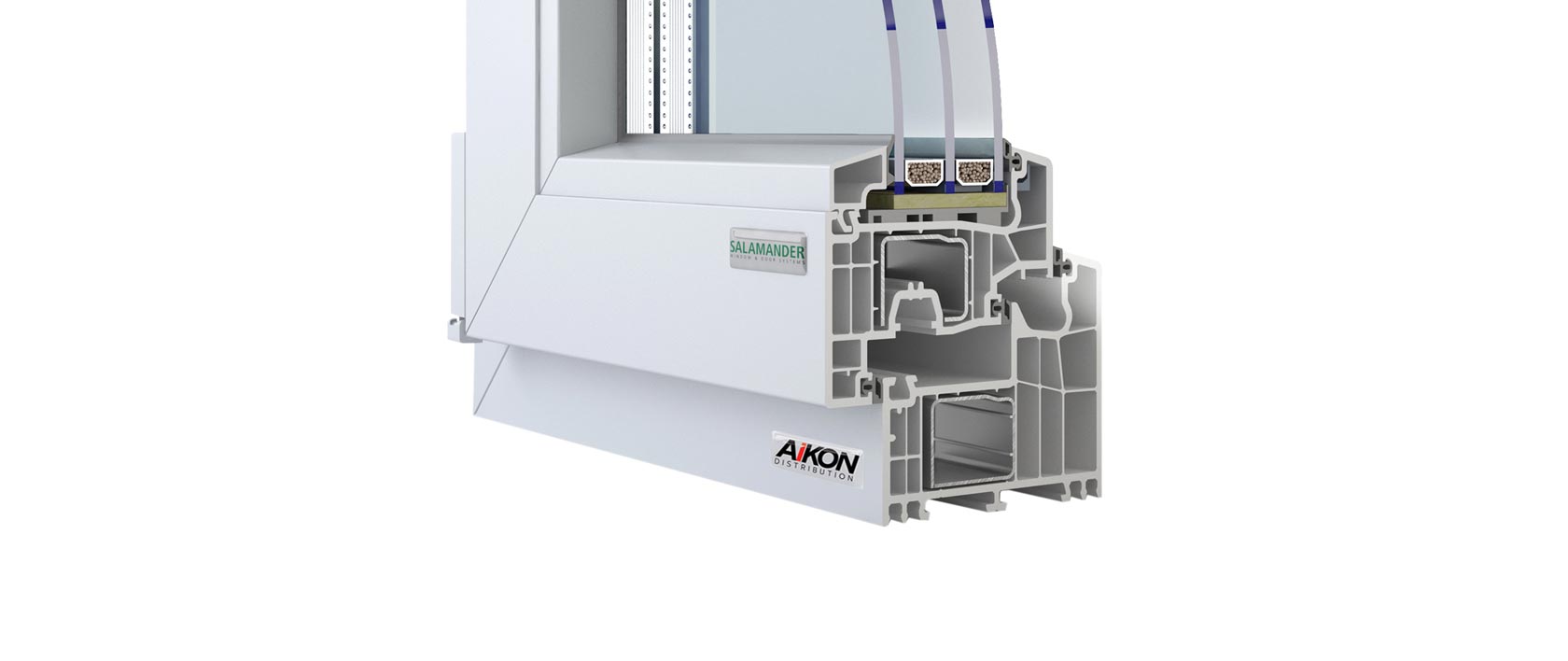

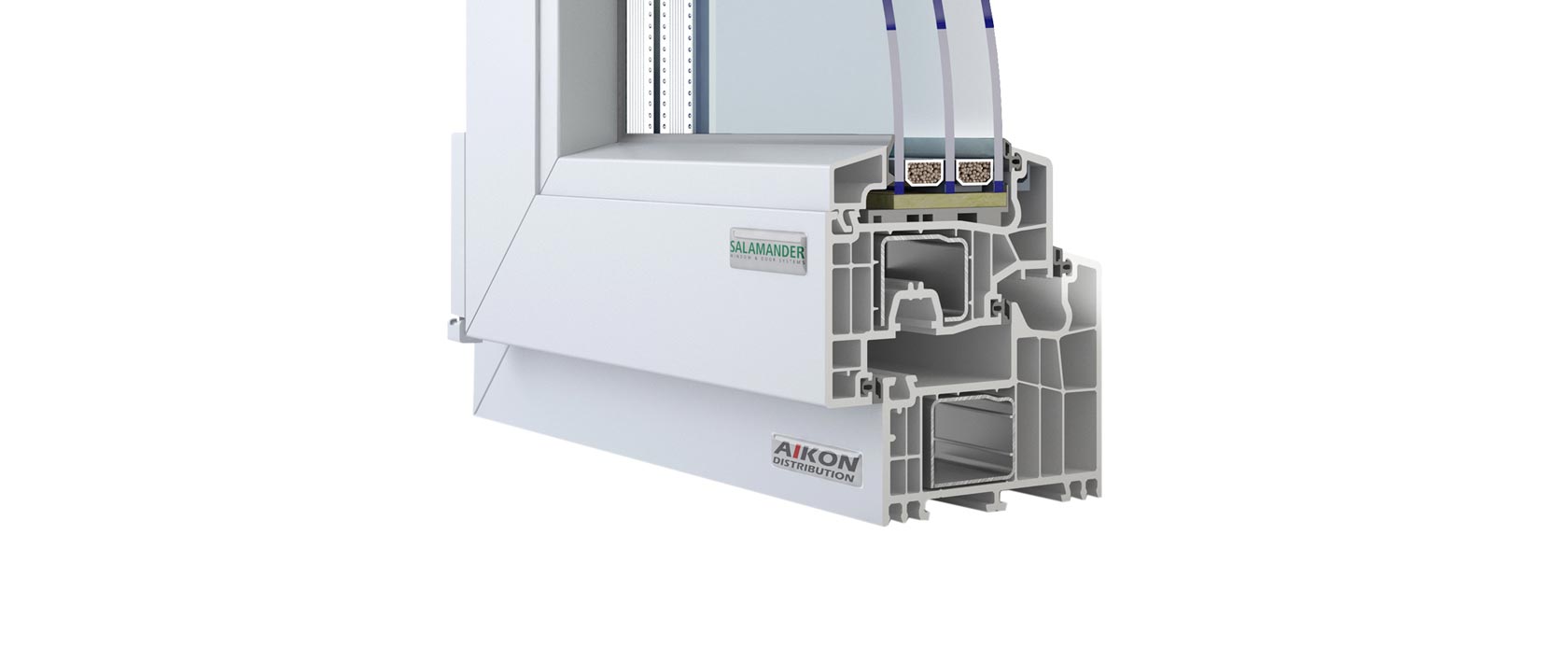

SALAMANDER BLUEVOLUTION 92
Due to its outstanding heat insulation and energy efficiency this profile is dedicated for construction of ultra-low energy buildings. Six-chamber design, installation depth of 92 mm, triple gasket, as well as attractive design of the profile (118mm profile sightlines) guarantees unmatched protection against moisture, noise and heat loss.
Class and confidence Bluevolution 92 Salamander
The BluEvolution 92 profile is classified in accordance with PN-EN 12608 to the top category of profiles: class A that offers thickness of the external walls of profile not less than 2.8 mm. Class A profiles make window frames and sashes more resistant to deformations and bending, even for large sizes.
Passive uPVC windows
Salamander BluEvolution 92 has been designed to cut heat losses and increase insulation of a building. The heat transfer coefficient of the BluEvolution 92 profile is Uf=1.0 W/m2K. This is possible due to the installation depth of 92 mm, six-chamber design of the profile, combination of triple gasket system and an option to use glazing units of up to 60mm thickness.
Protection of the environment
The BluEvolution 92 system is perfect for anyone who pays attention to the condition of our environment. Thanks to its technical performance, the profile significantly contributes to the reduction of CO2 emissions, and its high quality plastic is recyclable when the lifespan of the profile expires.

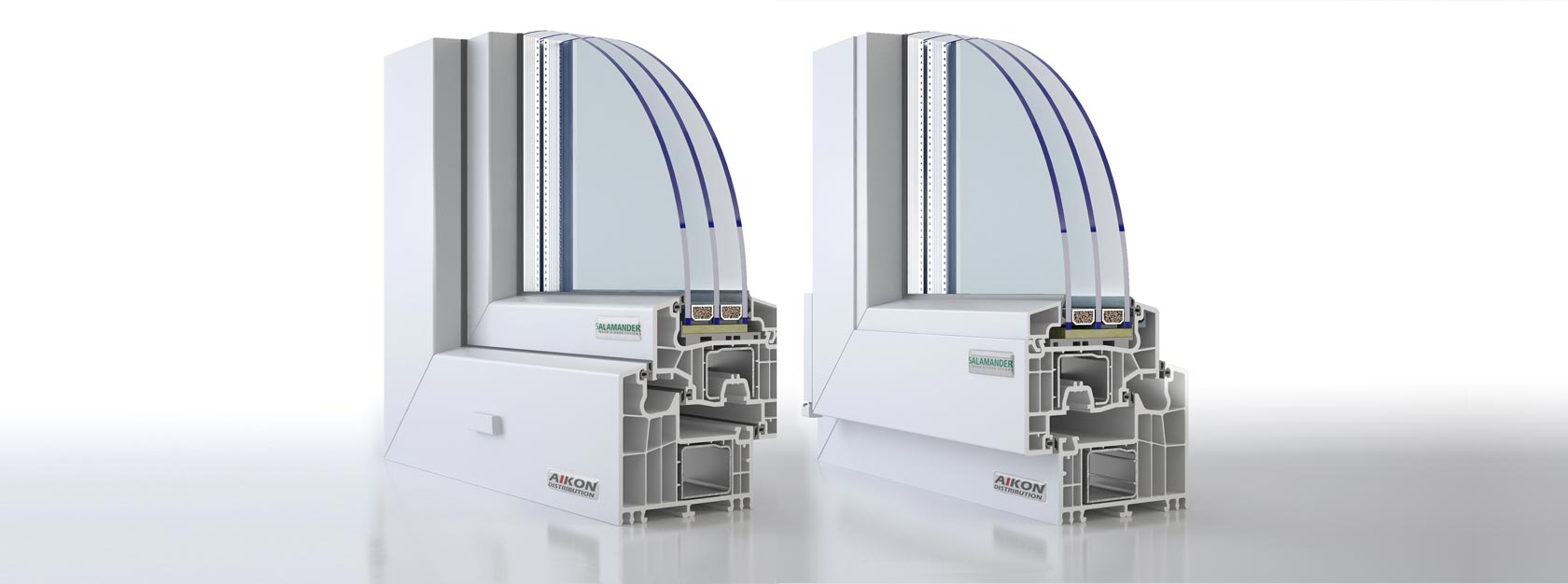

BluEvolution 92 window with a quadruple glazing unit
This profile is dedicated for the most demanding customers, as its heat transfer coefficient is as low as Ug = 0.4 W/m2*K. This solution enables outstanding cost-efficiency throughout the entire year, regardless of the weather – during summer period it will prevent the interior from the build-up of excess heat, while in the winter it will reduce heat loss. BluEvolution 92 with its quadruple glazing unit is an unmatched champion in terms of energy efficiency, thermal and sound insulation.
Please contact our sales representative and discover BluEvolution 92 with a quadruple glazing unit –
uPVC made-to-measure windows
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
Images are for reference purposes only. In our offer you can also find Veka front door.
Do you like Salamander products? Then also check out the Salamander Greenevolution AD and Greenevolution MD.
Installation depth
92mm
Number of chambers
6 chambers
Heat transfer coefficient
Uf = 1,0 W/m2*K
Profile class
A
Weather stripping
Triple external with TPE, gray/black
Available pane fixations thicknesses
24 mm - 60 mm
Standard glazing
4/18Ar/4/18Ar/4 (Rw=33dB, Lt=72%, g=50%)
Standard handle
Hoppe Secustic
Steel thickness
1,5 - 2,0 mm
Dyed profile core for 2s colors
Yes: Brown, White, caramel
Warranty
5 years for the whole window
Certificates
CE, CEKAL (glazing)
Order processing time
from 2 weeks
Additional parameters
Download technical drawings
Download our catalogue
Due to its outstanding heat insulation and energy efficiency this profile is dedicated for construction of ultra-low energy buildings. Six-chamber design, installation depth of 92 mm, triple gasket, as well as attractive design of the profile (118mm profile sightlines) guarantees unmatched protection against moisture, noise and heat loss.
Class and confidence Bluevolution 92 Salamander
The BluEvolution 92 profile is classified in accordance with PN-EN 12608 to the top category of profiles: class A that offers thickness of the external walls of profile not less than 2.8 mm. Class A profiles make window frames and sashes more resistant to deformations and bending, even for large sizes.
Passive uPVC windows
Salamander BluEvolution 92 has been designed to cut heat losses and increase insulation of a building. The heat transfer coefficient of the BluEvolution 92 profile is Uf=1.0 W/m2K. This is possible due to the installation depth of 92 mm, six-chamber design of the profile, combination of triple gasket system and an option to use glazing units of up to 60mm thickness.
Protection of the environment
The BluEvolution 92 system is perfect for anyone who pays attention to the condition of our environment. Thanks to its technical performance, the profile significantly contributes to the reduction of CO2 emissions, and its high quality plastic is recyclable when the lifespan of the profile expires.
BluEvolution 92 window with a quadruple glazing unit
This profile is dedicated for the most demanding customers, as its heat transfer coefficient is as low as Ug = 0.4 W/m2*K. This solution enables outstanding cost-efficiency throughout the entire year, regardless of the weather – during summer period it will prevent the interior from the build-up of excess heat, while in the winter it will reduce heat loss. BluEvolution 92 with its quadruple glazing unit is an unmatched champion in terms of energy efficiency, thermal and sound insulation.
Please contact our sales representative and discover BluEvolution 92 with a quadruple glazing unit –
uPVC made-to-measure windows
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
Images are for reference purposes only. In our offer you can also find Veka front door.
Do you like Salamander products? Then also check out the Salamander Greenevolution AD and Greenevolution MD.
| Installation depth | 92mm |
| Number of chambers | 6 chambers |
| Heat transfer coefficient | Uf = 1,0 W/m2*K |
| Profile class | A |
| Weather stripping |
Triple external with TPE, gray/black |
| Available pane fixations thicknesses | 24 mm - 60 mm |
| Standard glazing | 4/18Ar/4/18Ar/4 (Rw=33dB, Lt=72%, g=50%) |
| Standard handle | Hoppe Secustic |
| Steel thickness | 1,5 - 2,0 mm |
| Dyed profile core for 2s colors | Yes: Brown, White, caramel |
| Warranty | 5 years for the whole window |
| Certificates | CE, CEKAL (glazing) |
| Order processing time | from 2 weeks |
