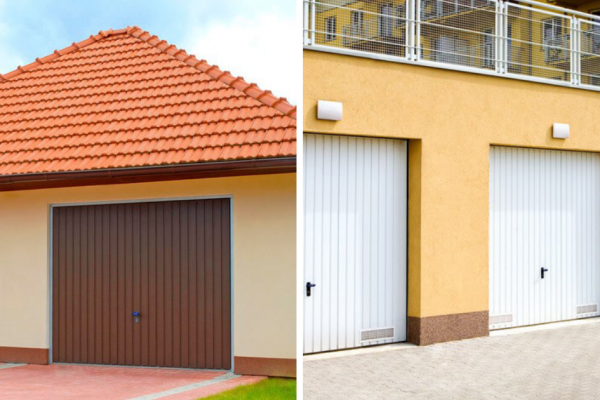

Up and Over Garage Doors
Simple and reliable up and over garage doors are one of the most common application for garages. Solid construction and application of simple open-close mechanism ensure minimal risk of breakdown. Up and over garage doors offer very good protection against cold, wind, rain and moisture but also security protection from unauthorized entry.
Up and over garage door - operating
The leaf of the door opens and closes through a spring mechanism. The movement of the leaf is controlled by the opener limit.
Manual and automatic control of the gate
You can easily open and close up and over garage doors. Special springs, bearing rolls and door stops mounted on the door tracks guarantee a smooth operation. Electric up and over garage door can be equipped with automatic control ensuring easy-of-use operation. The door controlled electrically can be opened using a remote control without a necessity of getting out of the car.

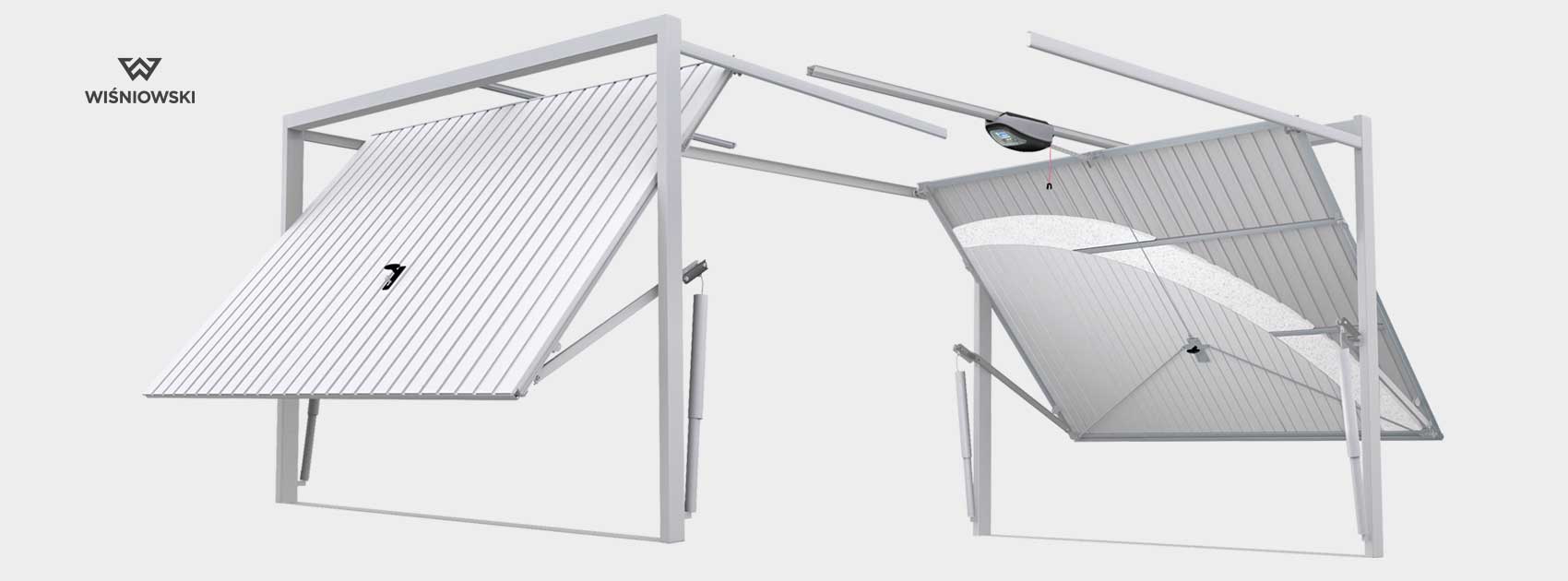

Up and over garage door – construction
-
The cover of the gate is made of profiled, high-rigidity steel sheet metal
-
Open-close mechanism consists of special springs, bearing rolls and opener limit.
-
Styrofoam can be applied to improve thermal parameters.
Roller garage door with additional door sash
Adding door sash to the garage door enhances functionality and comfort of use. If the opening offers enough width, side door separate from the garage door can be applied. The side door has an identical pattern, colour and infill as the garage door. Pass-through door, integral with garage door offers additional functionality.
Safe use of garage door
Photocells, overload protection and spring covers are offered as the garage doors additional safety accessories. With automatic safety function the garage door will stop and reverse automatically if obstructed going down offering additional security fot children and pets. Two-point locking bar protects from an unauthorized entry. High level of protection is confirmed by the certificates complying with EN 13241-1 norm.
Modern design

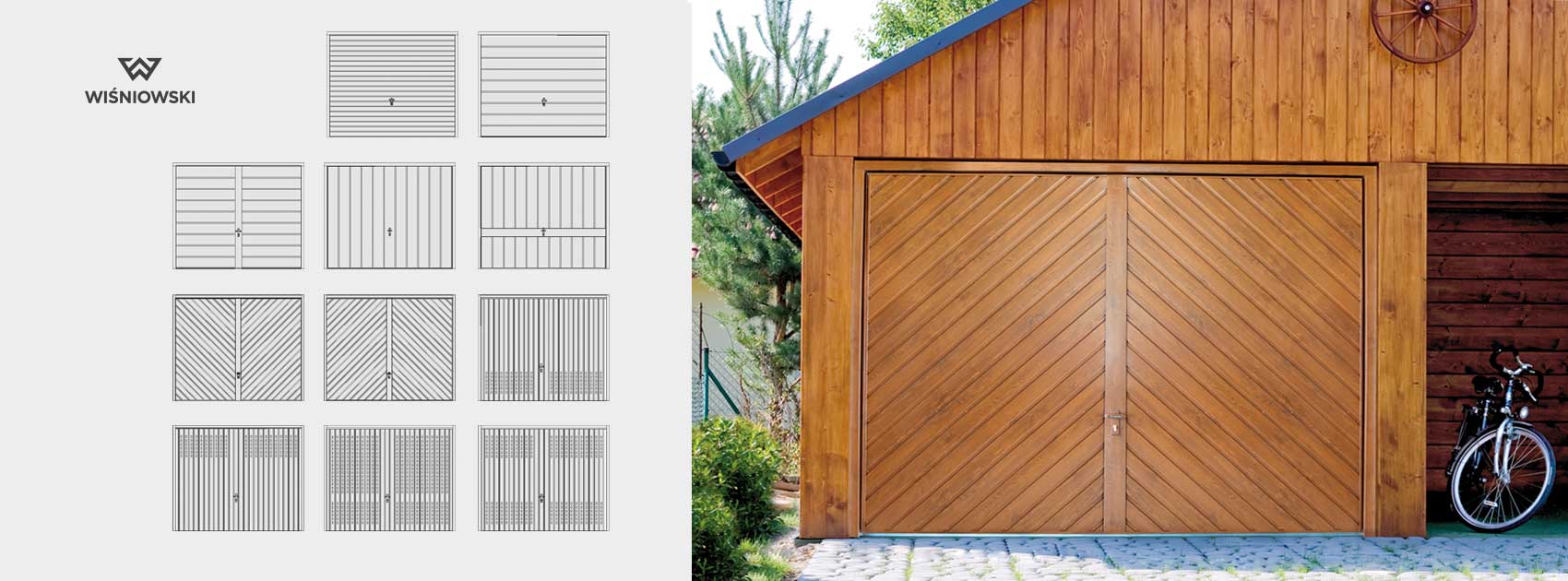

The shutter is made of steel sheet metal which can be profiled horizontally, vertically or diagonally. There is a choice of low and high ribs which can be combined with acrylic "frozen" pane. Virtually endless range of RAL colours and modern wood-like colours enable to manufacture electric up and over garage doors architectural style of every home meeting requirements of individual users.
Industrial up and over garage doors
Up and over garage doors are often used in industrial buildings. They are solid and functional offering perfect entrance security.
This type of door does not meet your needs? Also check out our roller garage doors.
TYPE OF GARAGE DOOR
UP-AND-OVER GARAGE DOOR
Shutter
Profiled steel sheet metal
Shutter design
Steel sheet metal, profiled horizontally, vertically or diagonally. Possibility of choosing high or low ribs. Possibility of combining with acrylic "frozen" pane
Available colours
7 standard RAL colours
Wood-like colours: gold oak, nut
Any colour from the RAL palette (available on request)
Decorative applications
-
Doors
side garage doors
Operating
electric, manual
Max. size (width x height)
4000 x 2700 mm
Min. side space required
100 mm (assembly behind the opening)
0 mm (assembly in the opening)
Turnaround
from 3 weeks
Warranty
2 years*
*detailed warranty conditions available from your sales representative
ADDITIONAL PARAMETERS:
Made-to-measure up and over garage door
We offer a possibility of determining exact dimensions of garage doors, control system, finish and additional elements (e.g. side and pass-through door, ventilation etc). Variety of technical solutions enable us to undertake the most sophisticated custom orders even when ordering a single garage door. Variety of technical solutions enable us to undertake the most sophisticated projects even when ordering a single garage door.
Up and over garage doors - price and quality
We offer garage doors suited for different budgets. For demanding customers we recommend garage doors of reputable Wiśniowski brand. We also have budget product range of solid and functional garage doors made by Polish manufacturers.
Simple and reliable up and over garage doors are one of the most common application for garages. Solid construction and application of simple open-close mechanism ensure minimal risk of breakdown. Up and over garage doors offer very good protection against cold, wind, rain and moisture but also security protection from unauthorized entry.
Up and over garage door - operating
The leaf of the door opens and closes through a spring mechanism. The movement of the leaf is controlled by the opener limit.
Manual and automatic control of the gate
You can easily open and close up and over garage doors. Special springs, bearing rolls and door stops mounted on the door tracks guarantee a smooth operation. Electric up and over garage door can be equipped with automatic control ensuring easy-of-use operation. The door controlled electrically can be opened using a remote control without a necessity of getting out of the car.
Up and over garage door – construction
- The cover of the gate is made of profiled, high-rigidity steel sheet metal
- Open-close mechanism consists of special springs, bearing rolls and opener limit.
- Styrofoam can be applied to improve thermal parameters.
Roller garage door with additional door sash
Adding door sash to the garage door enhances functionality and comfort of use. If the opening offers enough width, side door separate from the garage door can be applied. The side door has an identical pattern, colour and infill as the garage door. Pass-through door, integral with garage door offers additional functionality.
Safe use of garage door
Photocells, overload protection and spring covers are offered as the garage doors additional safety accessories. With automatic safety function the garage door will stop and reverse automatically if obstructed going down offering additional security fot children and pets. Two-point locking bar protects from an unauthorized entry. High level of protection is confirmed by the certificates complying with EN 13241-1 norm.
Modern design
The shutter is made of steel sheet metal which can be profiled horizontally, vertically or diagonally. There is a choice of low and high ribs which can be combined with acrylic "frozen" pane. Virtually endless range of RAL colours and modern wood-like colours enable to manufacture electric up and over garage doors architectural style of every home meeting requirements of individual users.
Industrial up and over garage doors
Up and over garage doors are often used in industrial buildings. They are solid and functional offering perfect entrance security.
This type of door does not meet your needs? Also check out our roller garage doors.
| TYPE OF GARAGE DOOR | UP-AND-OVER GARAGE DOOR |
| Shutter | Profiled steel sheet metal |
| Shutter design | Steel sheet metal, profiled horizontally, vertically or diagonally. Possibility of choosing high or low ribs. Possibility of combining with acrylic "frozen" pane |
| Available colours |
7 standard RAL colours Wood-like colours: gold oak, nut Any colour from the RAL palette (available on request) |
| Decorative applications | - |
| Doors | side garage doors |
| Operating | electric, manual |
| Max. size (width x height) | 4000 x 2700 mm |
| Min. side space required |
100 mm (assembly behind the opening) 0 mm (assembly in the opening) |
| Turnaround | from 3 weeks |
| Warranty | 2 years* |
*detailed warranty conditions available from your sales representative
ADDITIONAL PARAMETERS:
Made-to-measure up and over garage door
We offer a possibility of determining exact dimensions of garage doors, control system, finish and additional elements (e.g. side and pass-through door, ventilation etc). Variety of technical solutions enable us to undertake the most sophisticated custom orders even when ordering a single garage door. Variety of technical solutions enable us to undertake the most sophisticated projects even when ordering a single garage door.
Up and over garage doors - price and quality
We offer garage doors suited for different budgets. For demanding customers we recommend garage doors of reputable Wiśniowski brand. We also have budget product range of solid and functional garage doors made by Polish manufacturers.
