Built-in Aluprof

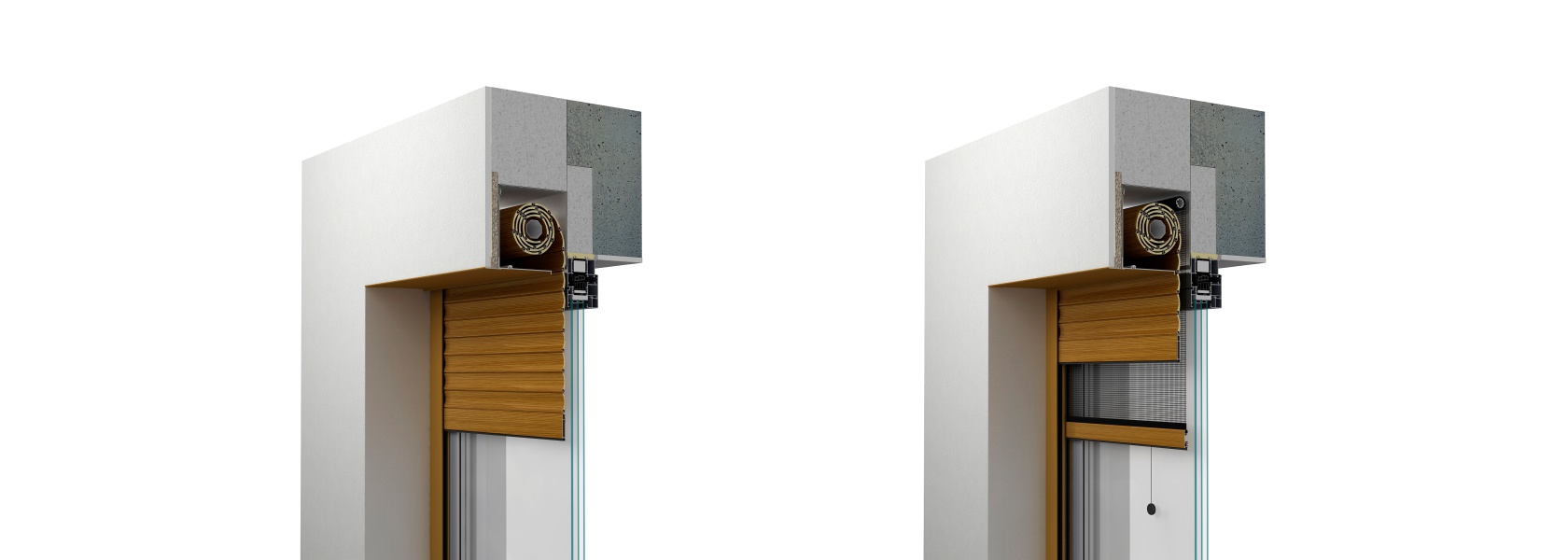

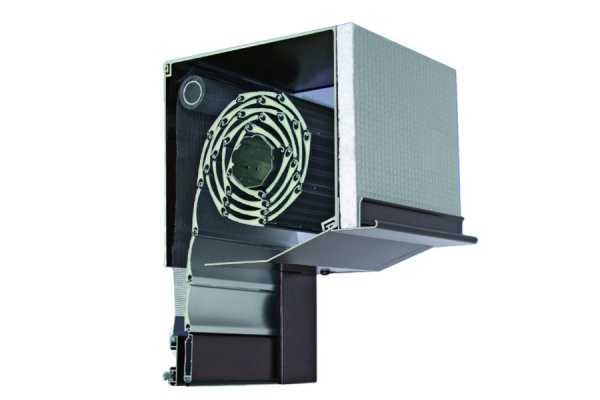

Built-in Aluprof roller shutters
Built-in roller shutters are a perfect solution for the newly emerging buildings. The Aluprof roller shutters of this type require specially contoured lintel or recess. Their advantage is the "architectural purity" due to the lack of interference in an appearance of the elevationb> and covering of fitting elements from both sides under the plaster.
Custom sized front-mounted roller shutters
The Aluprof built-in shutters system are adjusted to different window dimensions. Depending on a chosen model, a cross-border dimension equals 8,0 square meters.
Aluprof built in shutters with insect screen
You can equip an on-plaster roller shutter Aluprof with a grey insect screen placed on the internal side of the curtain.
Producer of roller shutters Aluprof
Aluprof S.A. belongs to a leading European producers of aluminum systems for building industry. In the area, of a size close to 80.000 m2, high-tech production lines of profiles and roller shutter boxes and modern, fully-automated line for powder coating are located.
Check also Aluplast 4000 Renovation.
Roller shutter type
built-in
Inspection cover
bottom of the box
Box
straight shape 90°, pvc
Box: width x height (mm)
137x137, 150x150, 165x165, 180x180, 205x205
Box with insect screen: width x height (mm)
165x165, 180x180, 205x205
Curtain
Aluprof
Guide
alu
Insect screen
possible integration
Due date
from 2 weeks
Curtain coloring
Aluprof colors
Box and guides coloring
Aluprof, RAL colors (for alu guides)
Certificate
CE
Roller shutter curtains
Control systems
Roller shutters with manual control system: mini belt roller, white or brown, is available as a standard.
DOWNLOAD TECHNICAL DRAWINGS
Built-in Aluprof roller shutters
Built-in roller shutters are a perfect solution for the newly emerging buildings. The Aluprof roller shutters of this type require specially contoured lintel or recess. Their advantage is the "architectural purity" due to the lack of interference in an appearance of the elevationb> and covering of fitting elements from both sides under the plaster.
Custom sized front-mounted roller shutters
The Aluprof built-in shutters system are adjusted to different window dimensions. Depending on a chosen model, a cross-border dimension equals 8,0 square meters.
Aluprof built in shutters with insect screen
You can equip an on-plaster roller shutter Aluprof with a grey insect screen placed on the internal side of the curtain.
Producer of roller shutters Aluprof
Aluprof S.A. belongs to a leading European producers of aluminum systems for building industry. In the area, of a size close to 80.000 m2, high-tech production lines of profiles and roller shutter boxes and modern, fully-automated line for powder coating are located.
Check also Aluplast 4000 Renovation.
| Roller shutter type | built-in |
| Inspection cover | bottom of the box |
| Box | straight shape 90°, pvc |
| Box: width x height (mm) | 137x137, 150x150, 165x165, 180x180, 205x205 |
| Box with insect screen: width x height (mm) | 165x165, 180x180, 205x205 |
| Curtain | Aluprof |
| Guide | alu |
| Insect screen | possible integration |
| Due date | from 2 weeks |
| Curtain coloring | Aluprof colors |
| Box and guides coloring | Aluprof, RAL colors (for alu guides) |
| Certificate | CE |
Roller shutter curtains
Control systems
Roller shutters with manual control system: mini belt roller, white or brown, is available as a standard.
