Built-in Alukon
Built-in Alukon roller shutters

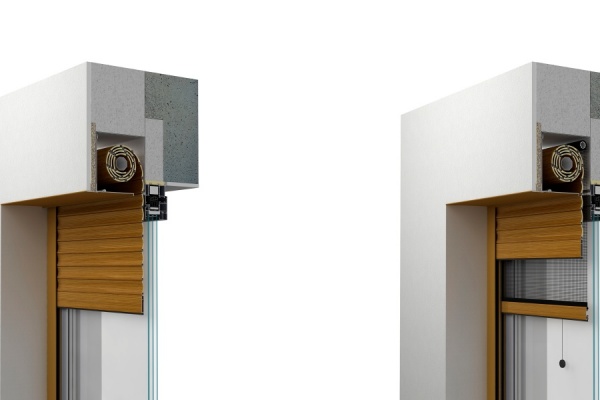

Built-in roller shutters are a perfect solution for the newly emerging buildings. The roller shutters of this type require specially contoured lintel or recess. Their advantage is the "architectural purity" due to the lack of interference in an appearance of the elevation and covering of fitting elements from both sides under the plaster.
Custom sized front-mounted roller shutters
Built-in Alukon system enables the production of roller shutters adjusted to the size of a window. Maximal size of the Alukon M 328 curtain is 5.8 m2. In case of the Alukon MY 442 courtain application, the limit size rises to 8.5 m2. If we decide on a roller shutter with an insect screen, it may have a surface of max. 3 m2.
Front-mounted roller shutters with insect screen
You can equip an on-plaster roller shutter Alukon with a grey insect screen placed on the internal side of the curtain.
A German producer of Alukon roller shutters
ALUKON KG is a well-known producer of roller shutters and gates on the worldwide construction market. Over 400 employees of the concern constantly take care of a high quality of the materials and the production process.
Roller shutter type
built-in
Inspection cover
bottom of the box

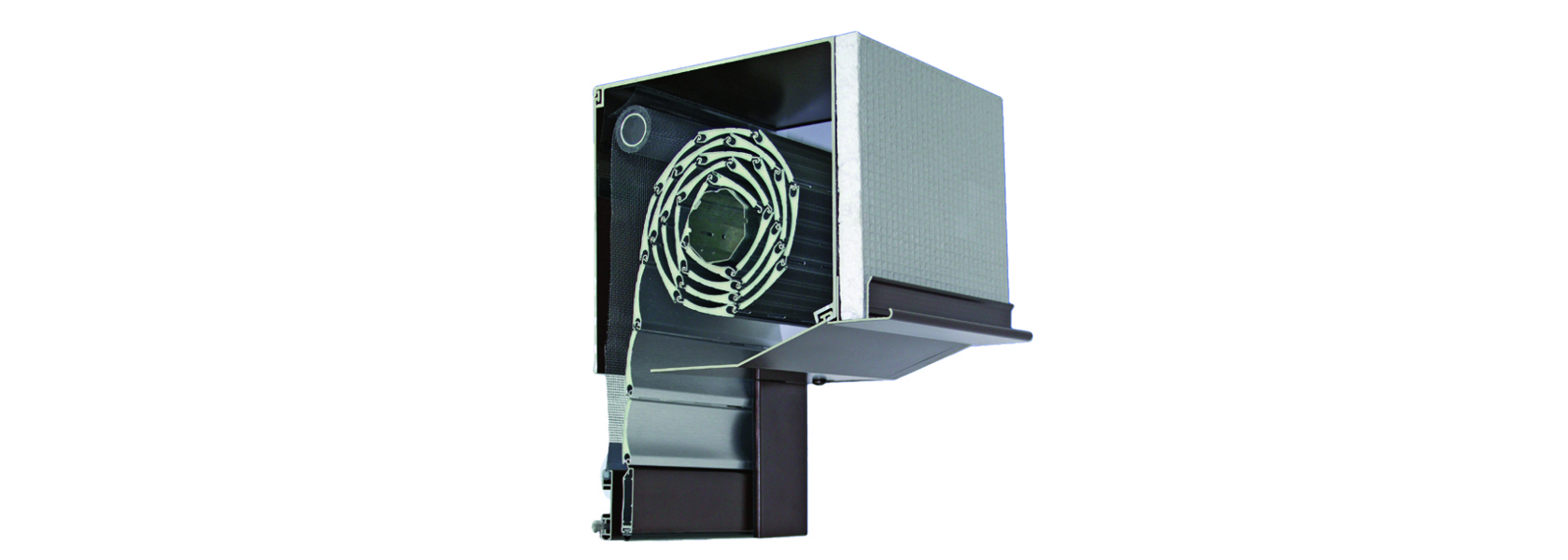

Box
Oblique shape 20°, alu
Box: width x height (mm)
137x139, 166x167, 182x181, 207x206
Box with insect screen: width x height (mm)
137x139, 166x167, 182x181, 207x206
Curtain
Alukon
Guide
alu
Insect screen
possible integration
Due date
from 2 weeks
Curtain coloring
Alukon colors
Box and guides coloring
Alukon, RAL colors (for alu guides)
Certificate
CE
Roller shutter curtains
Control systems
Roller shutters with manual control system: mini belt roller, white or brown, is available as a standard.
Built-in Alukon roller shutters
Built-in roller shutters are a perfect solution for the newly emerging buildings. The roller shutters of this type require specially contoured lintel or recess. Their advantage is the "architectural purity" due to the lack of interference in an appearance of the elevation and covering of fitting elements from both sides under the plaster.
Custom sized front-mounted roller shutters
Built-in Alukon system enables the production of roller shutters adjusted to the size of a window. Maximal size of the Alukon M 328 curtain is 5.8 m2. In case of the Alukon MY 442 courtain application, the limit size rises to 8.5 m2. If we decide on a roller shutter with an insect screen, it may have a surface of max. 3 m2.
Front-mounted roller shutters with insect screen
You can equip an on-plaster roller shutter Alukon with a grey insect screen placed on the internal side of the curtain.
A German producer of Alukon roller shutters
ALUKON KG is a well-known producer of roller shutters and gates on the worldwide construction market. Over 400 employees of the concern constantly take care of a high quality of the materials and the production process.
| Roller shutter type | built-in |
| Inspection cover | bottom of the box |
| Box | Oblique shape 20°, alu |
| Box: width x height (mm) | 137x139, 166x167, 182x181, 207x206 |
| Box with insect screen: width x height (mm) | 137x139, 166x167, 182x181, 207x206 |
| Curtain | Alukon |
| Guide | alu |
| Insect screen | possible integration |
| Due date | from 2 weeks |
| Curtain coloring | Alukon colors |
| Box and guides coloring | Alukon, RAL colors (for alu guides) |
| Certificate | CE |
Roller shutter curtains
Control systems
Roller shutters with manual control system: mini belt roller, white or brown, is available as a standard.
