ALIPLAST STAR
Considerably increased thermal insulation, three-chamber profile is designed for windows, doors and external window displays.

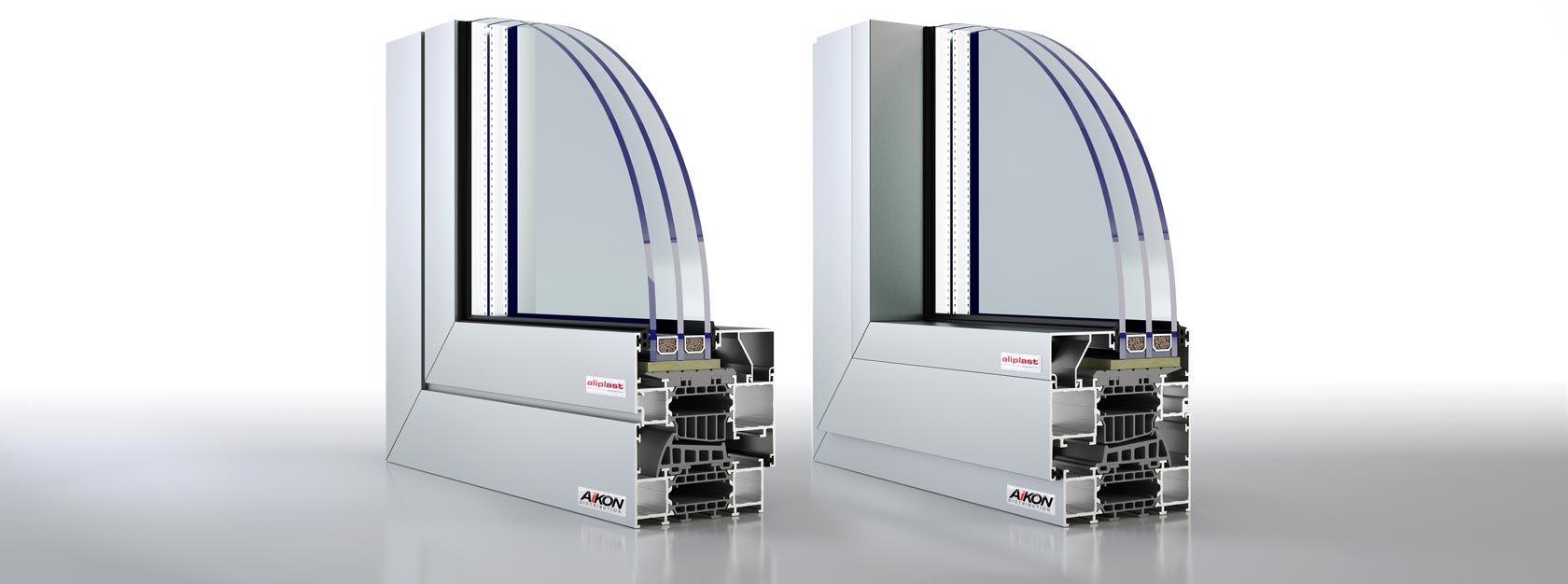

Passive House aluminium windows Aliplast Star

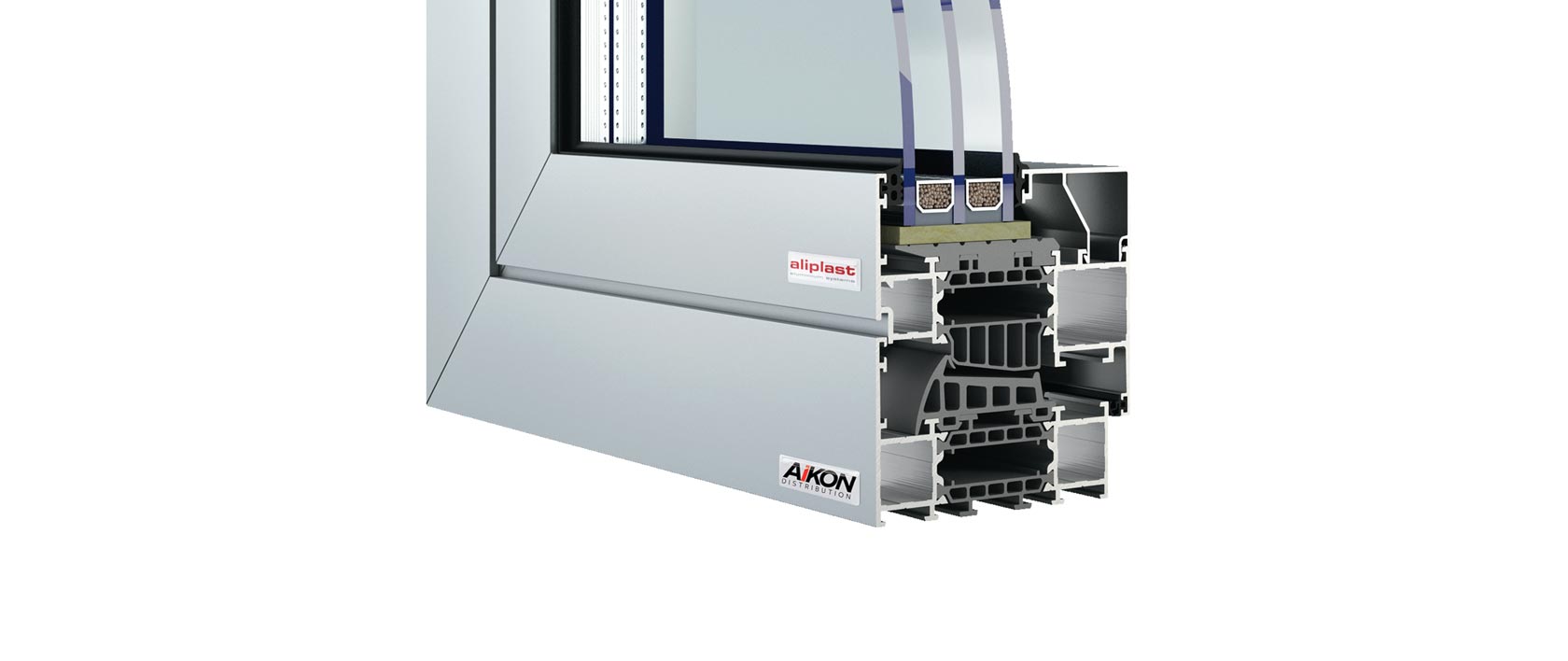

Application of 45mm thermal break made of innovative materials and a special cellular seal enhances durability and thermal insulation of the profile. Depending on the glazing unit, heat transfer coefficient for the Superial profile may reach Uf=1,38 W/m2*K. Additionally the profile shows effective sound insulation.
Modern design of the window
Modern, metallic material supported by almost limitless palette of RAL colours of smooth or structural finish and wide choice of additional profiles make aluminium doors, windows and large-sized glass and aluminium segments a modern architectural motive.
Deep aluminum Windows profiles
Star are 90mm installation depth aliminium windows profiles. This is 45mm more than industry standard, giving architects and constructors more flexibility for any project design and application. The Star system allows designing large-size constructions.
Aluminum windows with thick glazing units
Less amount of glazing beads and seals is needed to mount and seal glazing units in the rebates of the sashes. 24 to 82mm double or triple glazing units can be applied.
Arched, triangular, trapezoidal and circle windows
Our extensive experience allows us to use Aliplast system to manufacture arched, triangular, trapezoidal and circle windows.
Bespoke aluminium windows and doors in accordance with specifications
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
The price of Aliplast Star is custom calculated for each order.
Installation depth
90mm
Heat transfer coefficient
Uf a partir de 1,38 W/m2*K
Profile type
warm
Weather stripping
Double external with EPDM
Available pane fixations thicknesses
23 mm - 81 mm
Standard glazing
4/16Ar/4 [Rw=32dB, Lt=82%, g=65%]
Standard handle
Standard
Warranty
3 years*
Certificates
CE
Order processing time
from 5 - 8 weeks
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
Considerably increased thermal insulation, three-chamber profile is designed for windows, doors and external window displays.
Passive House aluminium windows Aliplast Star
Application of 45mm thermal break made of innovative materials and a special cellular seal enhances durability and thermal insulation of the profile. Depending on the glazing unit, heat transfer coefficient for the Superial profile may reach Uf=1,38 W/m2*K. Additionally the profile shows effective sound insulation.
Modern design of the window
Modern, metallic material supported by almost limitless palette of RAL colours of smooth or structural finish and wide choice of additional profiles make aluminium doors, windows and large-sized glass and aluminium segments a modern architectural motive.
Deep aluminum Windows profiles
Star are 90mm installation depth aliminium windows profiles. This is 45mm more than industry standard, giving architects and constructors more flexibility for any project design and application. The Star system allows designing large-size constructions.
Aluminum windows with thick glazing units
Less amount of glazing beads and seals is needed to mount and seal glazing units in the rebates of the sashes. 24 to 82mm double or triple glazing units can be applied.
Arched, triangular, trapezoidal and circle windows
Our extensive experience allows us to use Aliplast system to manufacture arched, triangular, trapezoidal and circle windows.
Bespoke aluminium windows and doors in accordance with specifications
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
The price of Aliplast Star is custom calculated for each order.
| Installation depth | 90mm |
| Heat transfer coefficient | Uf a partir de 1,38 W/m2*K |
| Profile type | warm |
| Weather stripping | Double external with EPDM |
| Available pane fixations thicknesses | 23 mm - 81 mm |
| Standard glazing | 4/16Ar/4 [Rw=32dB, Lt=82%, g=65%] |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
