Vintage collection
INTAGE collection - retro design in a contemporary design

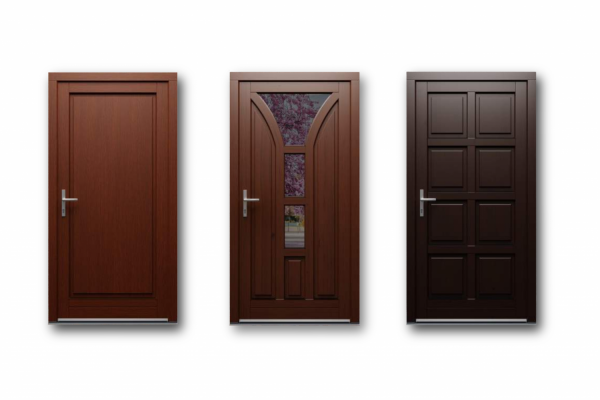

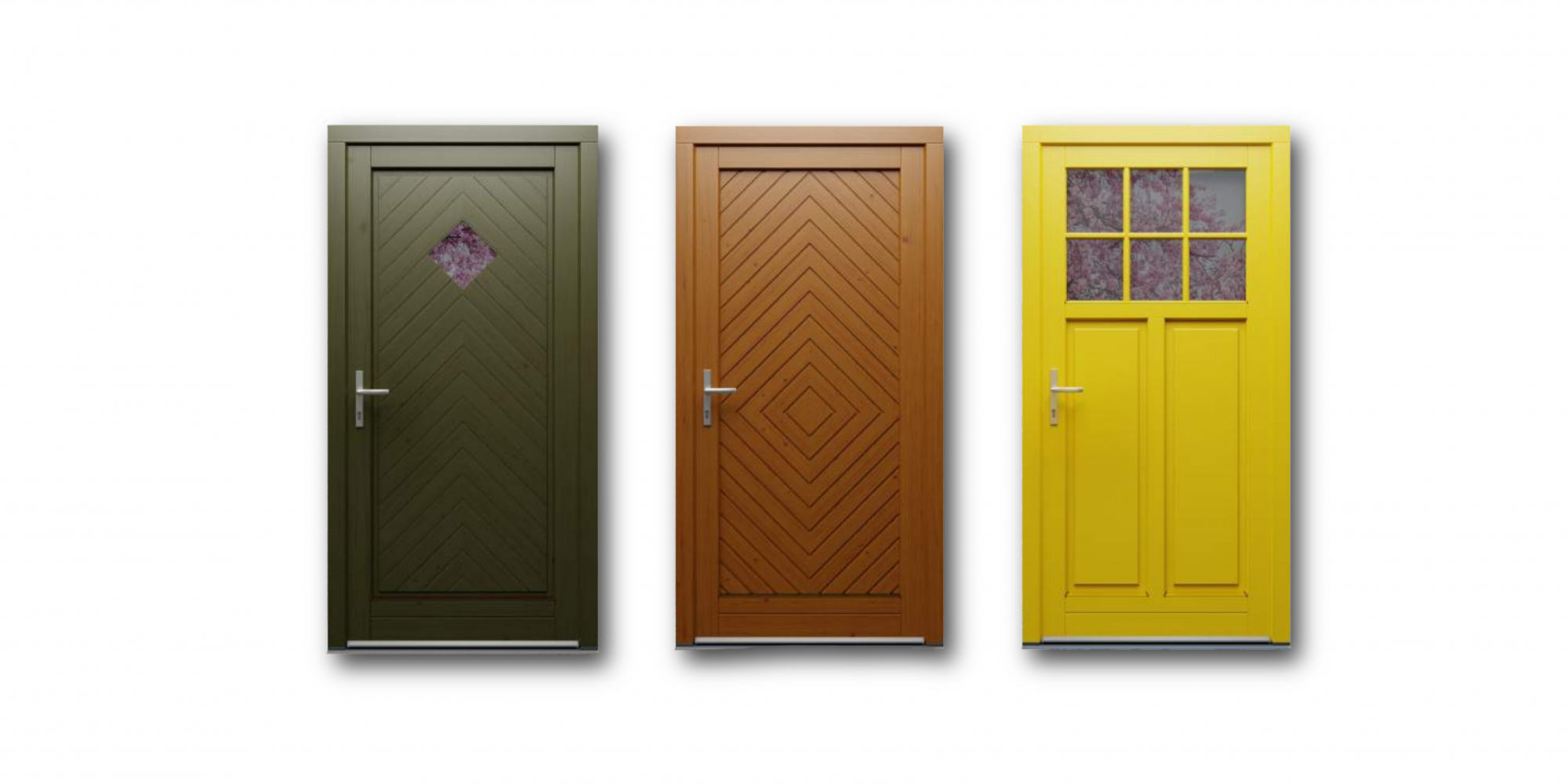

The timber frame doors of the VINTAGE collection are characterised by a timeless retro design, which is executed in a contemporary, almost perfect way.
Original shapes can be combined with bold colour. Juicy red, deep navy blue or bottle green are a guarantee that such doors will not go unnoticed.
An amazing vintage feel is combined with the functionality and stability of the door. They are a perfect match for classic homes, but also add variety to modern blocks.
Timber frame door construction
Timber frame doors are constructed with a distinctive timber frame in which the infill is placed. The infill is a board with a thermal insulation panel or glazing.
Available door depths
68 mm / 78 mm / 92 mm
Opening possibilities
inwards/outwards
Heat transfer coefficient
Uf = 1,4 W/m2*K
Etanchéité
EPDM
Profile construction
3-4 layers glued squared timber
Sealing
H6S36
Garantie
2 ans*
Delivery time
9 - 14 weeks
*detailed warranty conditions available from your sales representative
Doors are available in three standard depths, opening outwards or inwards in a choice of three threshold options.
Standard equipment
- SFS Easy 3D hinges
Load capacity of the set of 3 hinges up to 190 kg, easy adjustment in 3 planes (each dimension +/- 3 mm - left, right, vertical and leaf pressure) excellent corrosion resistance, security bolt as standard, rich colour range
- GU Secury Automatic strip lock
Multipoint lock with additional options: second lock, rigid chain, possibility to add an electric drive to the lock, fitting of a panic system
- Gutmann threshold
Threshold height 32 mm, continuity of the main seal on the frame and on the threshold, high tightness confirmed by tests, threshold extension can be fitted if required (GKG threshold option, height 20 mm).
INTAGE collection - retro design in a contemporary design
The timber frame doors of the VINTAGE collection are characterised by a timeless retro design, which is executed in a contemporary, almost perfect way.
Original shapes can be combined with bold colour. Juicy red, deep navy blue or bottle green are a guarantee that such doors will not go unnoticed.
An amazing vintage feel is combined with the functionality and stability of the door. They are a perfect match for classic homes, but also add variety to modern blocks.
Timber frame door construction
Timber frame doors are constructed with a distinctive timber frame in which the infill is placed. The infill is a board with a thermal insulation panel or glazing.
| Available door depths | 68 mm / 78 mm / 92 mm |
| Opening possibilities | inwards/outwards |
| Heat transfer coefficient | Uf = 1,4 W/m2*K |
| Etanchéité | EPDM |
| Profile construction | 3-4 layers glued squared timber |
| Sealing | H6S36 |
| Garantie | 2 ans* |
| Delivery time | 9 - 14 weeks |
*detailed warranty conditions available from your sales representative
Doors are available in three standard depths, opening outwards or inwards in a choice of three threshold options.
Standard equipment
- SFS Easy 3D hinges
Load capacity of the set of 3 hinges up to 190 kg, easy adjustment in 3 planes (each dimension +/- 3 mm - left, right, vertical and leaf pressure) excellent corrosion resistance, security bolt as standard, rich colour range
- GU Secury Automatic strip lock
Multipoint lock with additional options: second lock, rigid chain, possibility to add an electric drive to the lock, fitting of a panic system
- Gutmann threshold
Threshold height 32 mm, continuity of the main seal on the frame and on the threshold, high tightness confirmed by tests, threshold extension can be fitted if required (GKG threshold option, height 20 mm).
