REHAU EURO DESIGN 86 PLUS
Energy-efficient, universal, rounded-shape window profile that fits all architectural styles and perfectly protects the interior from heat loss and various weather conditions. Sash and frame are made of high quality uPVC material and include High Definition Finishing.
Energy-efficient Rehau euro design 86 plus for passive buildings

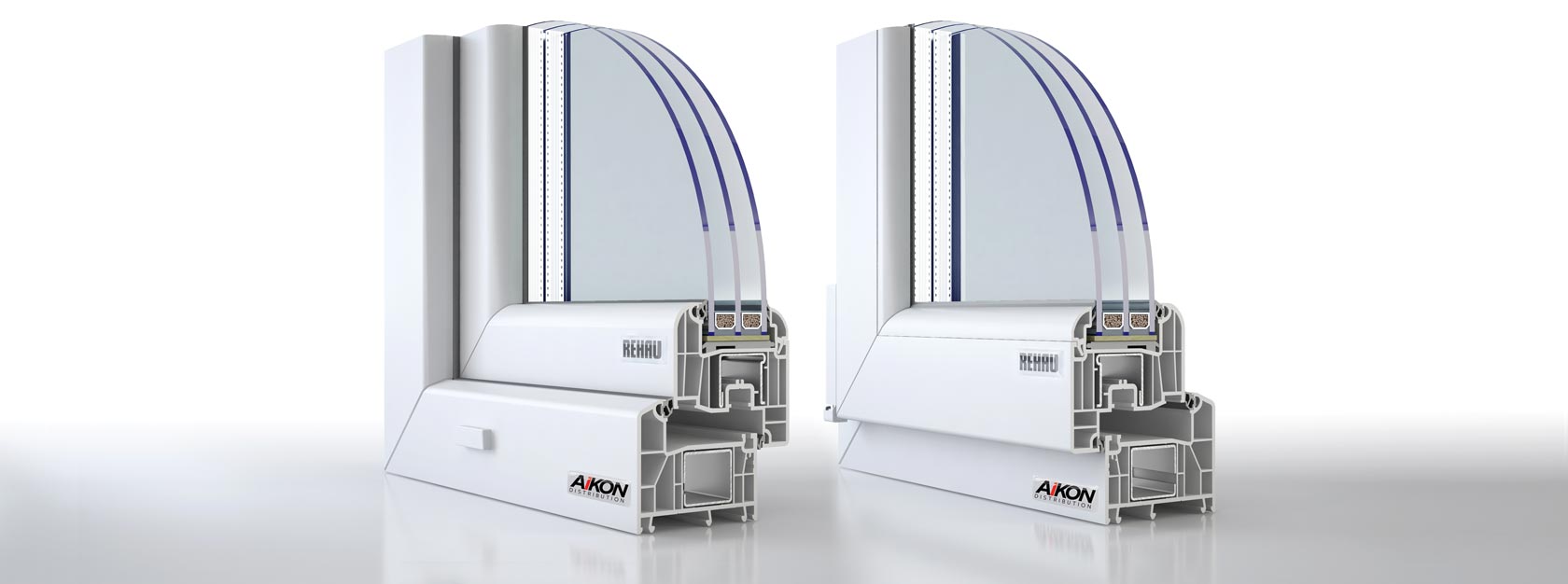

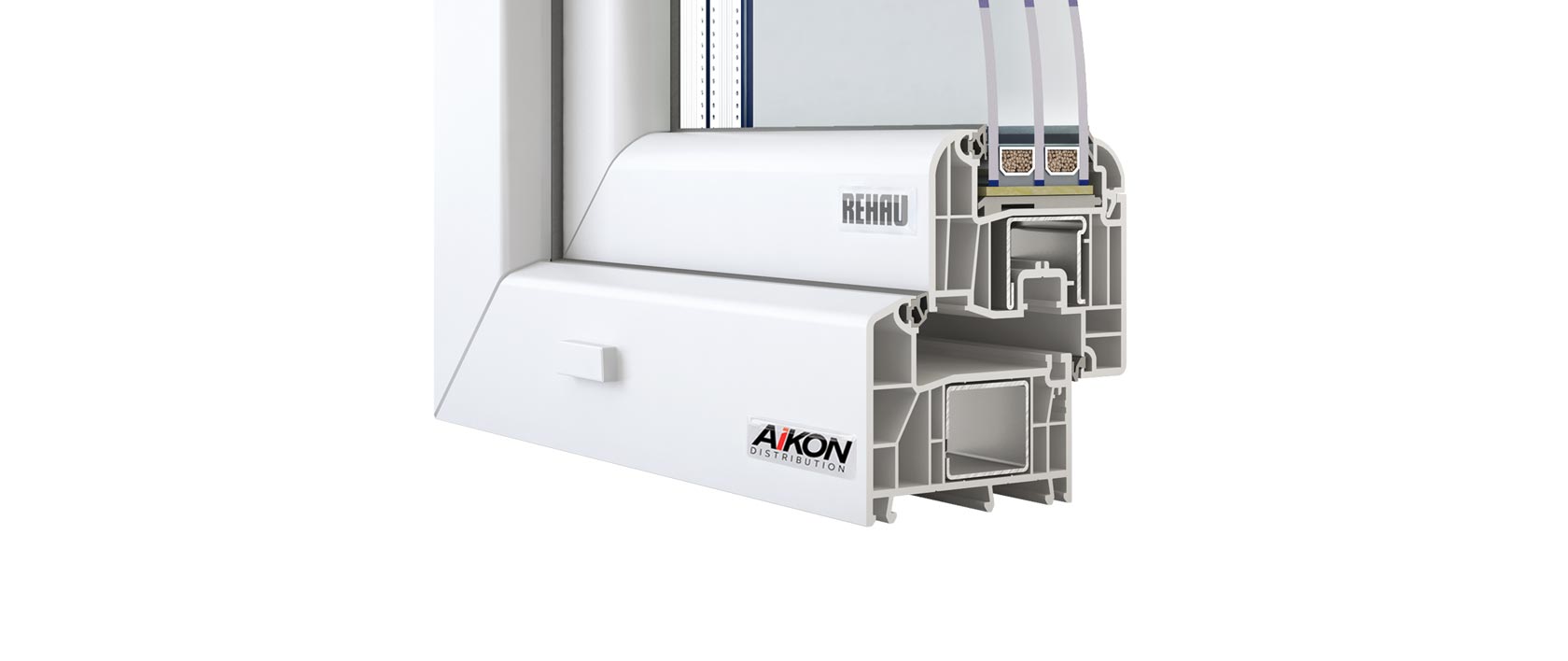

86mm installation depth, six-chamber profile supported by strong and durable, triple EPDM rubber sealing and modern double-glazed unit provides high degree of protection against cold, wind, rain and noise. The heat transfer coefficient is very low and equals Uf = 1,01 W/m2*K. Window profile euro design 86 plus offer high level of acoustic insulation. Additionally increased glazing surface of the profile ensures optimal room illumination.
Stylish and functional windows
Rich palette of colours and wide choice of additional profiles ensures this window is easily customizable to individual requirements or installation and architectural needs.
Rehau Euro Design 86 plus - Solidity and security
Galvanized steel reinforcements of 1.5-2 mm thickness provide excellent statics of the windows and protection against burglary. High quality hardware and deep mounting of the glazing unit ensure Rehau Euro Design 86 plus window profile are extremely robust and resistant to mechanical damage and various weather conditions.
Durable and easy-to-maintain windows
REHAU profiles are made of the best quality granulated uPVC which is environmentally friendly and can be recycled. Smooth surface of the profile - High Definition Finishing - allows easy maintenance and cleaning. Angled base of the frame rebate is considered as additional advantage of the profile. This allows facilitating water drainage and helps keeping the windows clean.
Windows with arches, triangular windows, trapezoids, circles
The Rehau system allows the making of windows in unusual shapes. We have experience in the production of windows with arches and triangular, trapezoidal and round windows.
UPVC MADE-TO-MEASURE WINDOWS
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one Rehau Euro Design 86 plus.
Images are for reference purposes only.
Check also: Rehau Geneo MD.
Product is temporarily unavailable. Contact the sales department:
Installation depth
86mm
Number of chambers
6 chambers
Heat transfer coefficient
Uf = 1,01 W/m2*K
Profile class
B
Weather stripping
Double external with EPDM rubber, grey/black
Available pane fixations thicknesses
24 mm - 40 mm
Standard glazing
4/16Ar/4 (Rw=29dB, Lt=80%, g=63%)
Standard handle
Hoppe Secustic
Steel thickness
1,5 - 2,0 mm (enclosed in a frame)
Dyed profile core for 2s colors
Yes: brown core under the veneer
Warranty
5 years for the whole window
Certificates
CE
Order processing time
from 3 weeks
Additional parameters
Download our catalogue
Energy-efficient, universal, rounded-shape window profile that fits all architectural styles and perfectly protects the interior from heat loss and various weather conditions. Sash and frame are made of high quality uPVC material and include High Definition Finishing.
Energy-efficient Rehau euro design 86 plus for passive buildings
86mm installation depth, six-chamber profile supported by strong and durable, triple EPDM rubber sealing and modern double-glazed unit provides high degree of protection against cold, wind, rain and noise. The heat transfer coefficient is very low and equals Uf = 1,01 W/m2*K. Window profile euro design 86 plus offer high level of acoustic insulation. Additionally increased glazing surface of the profile ensures optimal room illumination.
Stylish and functional windows
Rich palette of colours and wide choice of additional profiles ensures this window is easily customizable to individual requirements or installation and architectural needs.
Rehau Euro Design 86 plus - Solidity and security
Galvanized steel reinforcements of 1.5-2 mm thickness provide excellent statics of the windows and protection against burglary. High quality hardware and deep mounting of the glazing unit ensure Rehau Euro Design 86 plus window profile are extremely robust and resistant to mechanical damage and various weather conditions.
Durable and easy-to-maintain windows
REHAU profiles are made of the best quality granulated uPVC which is environmentally friendly and can be recycled. Smooth surface of the profile - High Definition Finishing - allows easy maintenance and cleaning. Angled base of the frame rebate is considered as additional advantage of the profile. This allows facilitating water drainage and helps keeping the windows clean.
Windows with arches, triangular windows, trapezoids, circles
The Rehau system allows the making of windows in unusual shapes. We have experience in the production of windows with arches and triangular, trapezoidal and round windows.
UPVC MADE-TO-MEASURE WINDOWS
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one Rehau Euro Design 86 plus.
Images are for reference purposes only.
Check also: Rehau Geneo MD.
Product is temporarily unavailable. Contact the sales department:
| Installation depth | 86mm |
| Number of chambers | 6 chambers |
| Heat transfer coefficient | Uf = 1,01 W/m2*K |
| Profile class | B |
| Weather stripping | Double external with EPDM rubber, grey/black |
| Available pane fixations thicknesses | 24 mm - 40 mm |
| Standard glazing | 4/16Ar/4 (Rw=29dB, Lt=80%, g=63%) |
| Standard handle | Hoppe Secustic |
| Steel thickness | 1,5 - 2,0 mm (enclosed in a frame) |
| Dyed profile core for 2s colors | Yes: brown core under the veneer |
| Warranty | 5 years for the whole window |
| Certificates | CE |
| Order processing time | from 3 weeks |
