Integrated roller shutters Revo
Exterior, integrated roller shutters Revo
Exterior roller shutters Revo equipped with innovative solutions are designed for older and newly-created buildings. Inspection hatch, frontal or bottom, which enables roller shutter maintenance, is opened towards the inside of an apartment.
Custom sized roller shutters
Roller shutters in Revo system are adjusted to various window sizes. Depending on chosen model, final size goes up to 9 m2.
The roller shutter can be easy assembled
Owing to the previous integration of the roller shutter with a window frame, “monoblock” (roller shutter + window) allows quick and easy fitting. Additionally, we offer a set consisting of the roller shutter and a white multipurpose PVC adapter.

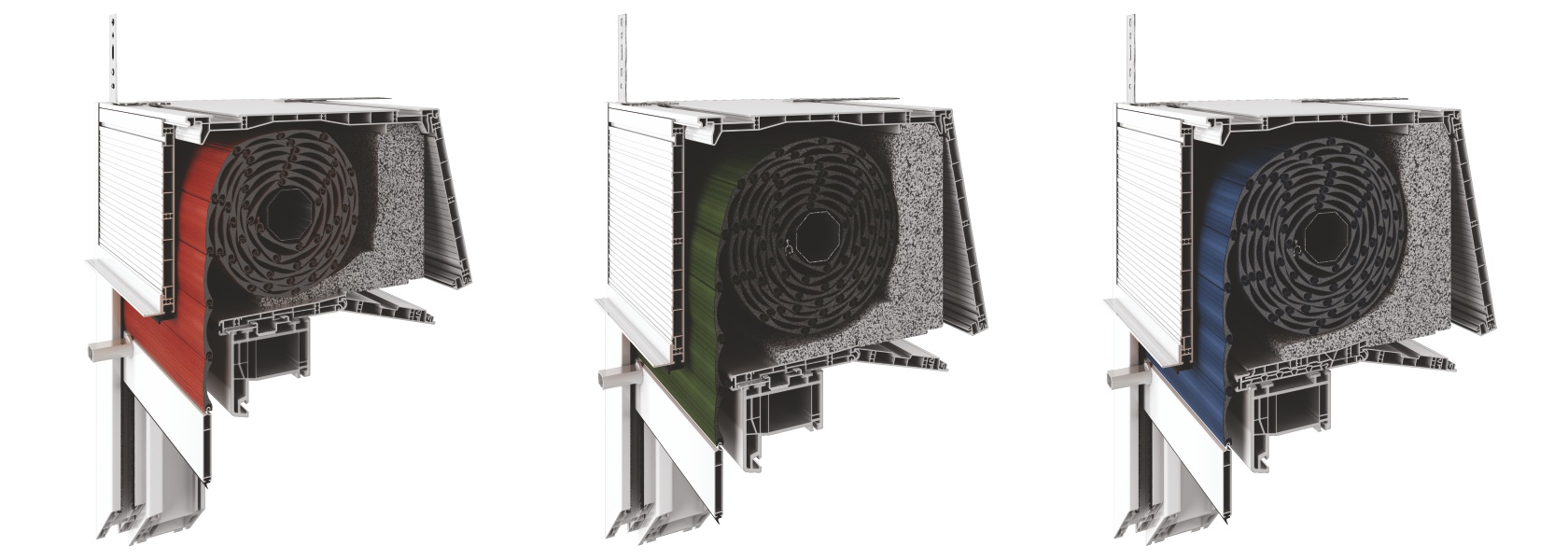

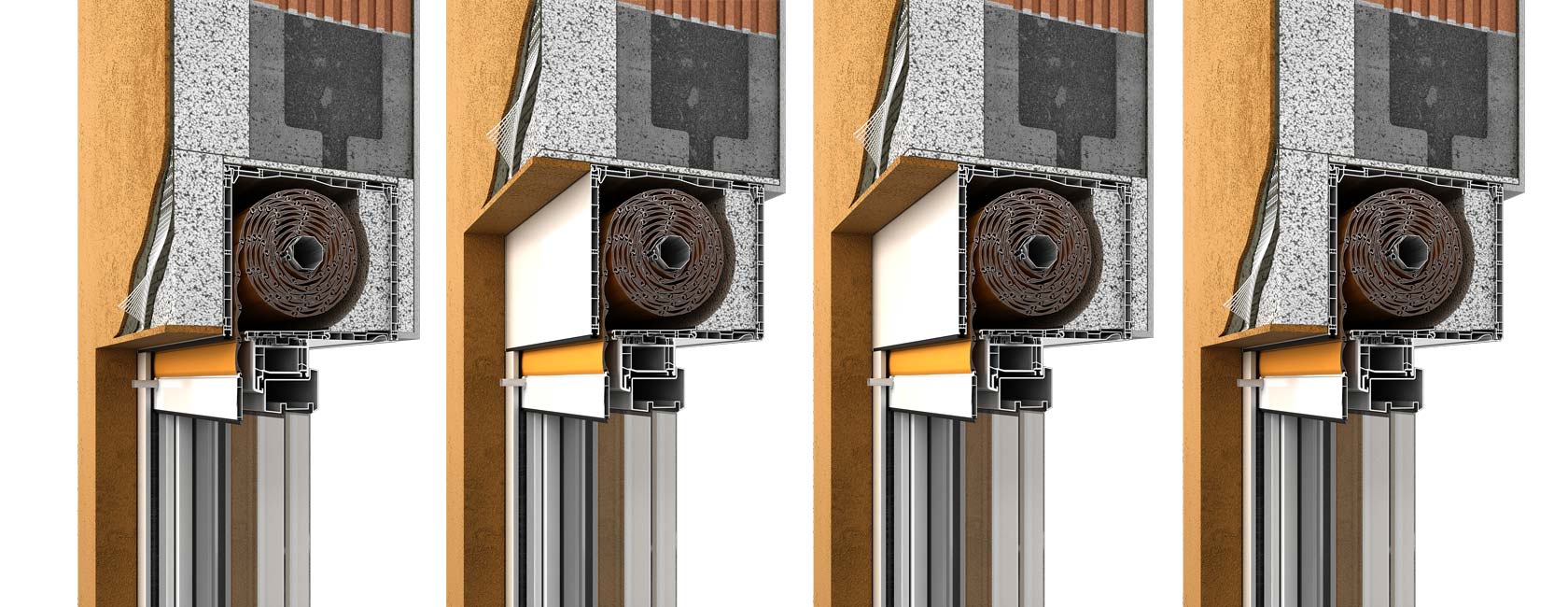

Different covering possibilities
Integrated roller shutters Revo system allows complete or partial roller shutter covering. Frontal box profile can be used reversible. Grooved surface eases the development, whereas on a flat surface the box looks just as well as without development.

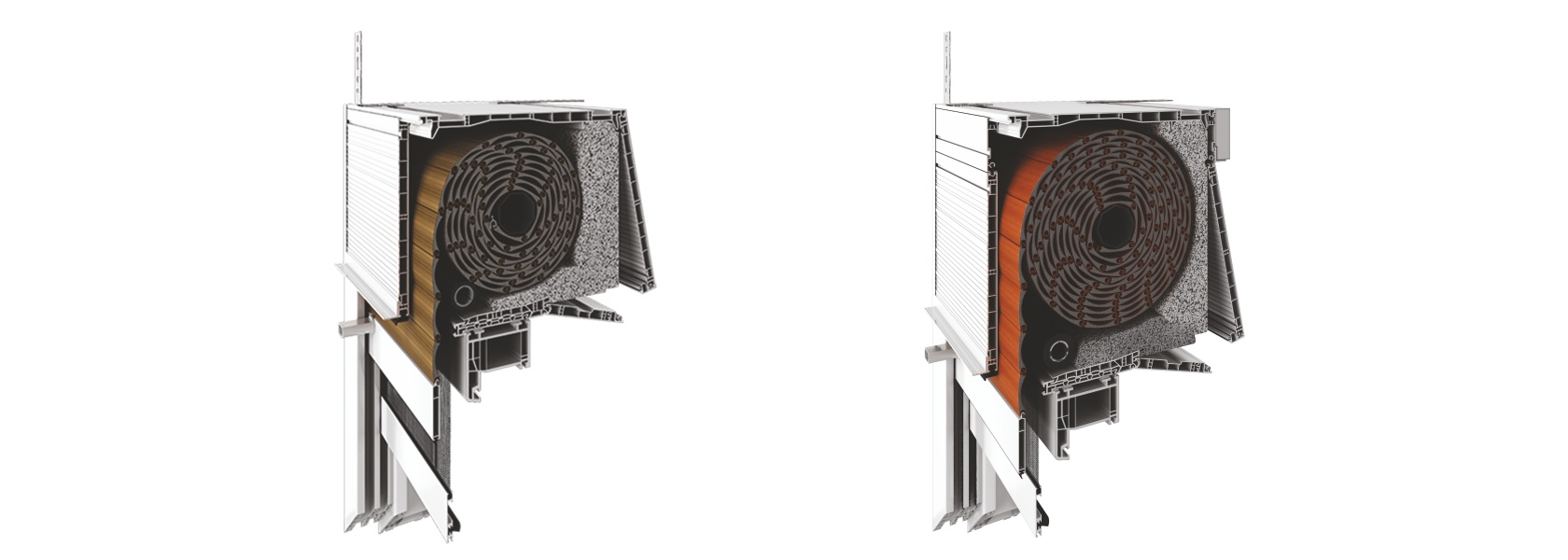

Exterior roller shutters Revo with insect screen
Revo roller shutters can be integrated with the insect screen through spring-loaded mechanics of screen with a brake. Grey-colored screen places itself on the internal side of the curtain. Kit includes double roller shutter and net’s guides with brushes.
REVOlutionary technology
The innovative character of VEGAS REVO systems is a result of a production process, during which a great pressure is put on constant development and improvement of a product. Roller shutters are created from the highest quality PVC accompanied by ecological, lead-free stabilizer.
Check also: roller shutters Exakt.
Product is temporarily unavailable. Contact the sales department:
Roller shutter type
integrated
Inspection cover
front or bottom of the box
Box
Straight shape 90°, pvc
Box: width x height (mm)
240x165, 240x205
Box with insect screen: width x height (mm)
240x205
Curtain
Alukon
Guide
pvc, alu
Insect screen
optional: interior curtain side
Due date
from 2 weeks
Curtain coloring
Alukon colors
Box and guides coloring
Revo, RAL colors (for alu guides)
Maximum depth of window’s frame
99 mm
Certificate
CE
Roller shutter curtains
Control systems
Roller shutters with manual control system: mini belt roller, white or brown, is available as a standard.
Download technical drawings
Exterior, integrated roller shutters Revo
Exterior roller shutters Revo equipped with innovative solutions are designed for older and newly-created buildings. Inspection hatch, frontal or bottom, which enables roller shutter maintenance, is opened towards the inside of an apartment.
Custom sized roller shutters
Roller shutters in Revo system are adjusted to various window sizes. Depending on chosen model, final size goes up to 9 m2.
The roller shutter can be easy assembled
Owing to the previous integration of the roller shutter with a window frame, “monoblock” (roller shutter + window) allows quick and easy fitting. Additionally, we offer a set consisting of the roller shutter and a white multipurpose PVC adapter.
Different covering possibilities
Integrated roller shutters Revo system allows complete or partial roller shutter covering. Frontal box profile can be used reversible. Grooved surface eases the development, whereas on a flat surface the box looks just as well as without development.
Exterior roller shutters Revo with insect screen
Revo roller shutters can be integrated with the insect screen through spring-loaded mechanics of screen with a brake. Grey-colored screen places itself on the internal side of the curtain. Kit includes double roller shutter and net’s guides with brushes.
REVOlutionary technology
The innovative character of VEGAS REVO systems is a result of a production process, during which a great pressure is put on constant development and improvement of a product. Roller shutters are created from the highest quality PVC accompanied by ecological, lead-free stabilizer.
Check also: roller shutters Exakt.
Product is temporarily unavailable. Contact the sales department:
| Roller shutter type | integrated |
| Inspection cover | front or bottom of the box |
| Box | Straight shape 90°, pvc |
| Box: width x height (mm) | 240x165, 240x205 |
| Box with insect screen: width x height (mm) | 240x205 |
| Curtain | Alukon |
| Guide | pvc, alu |
| Insect screen | optional: interior curtain side |
| Due date | from 2 weeks |
| Curtain coloring | Alukon colors |
| Box and guides coloring | Revo, RAL colors (for alu guides) |
| Maximum depth of window’s frame | 99 mm |
| Certificate | CE |
Roller shutter curtains
Control systems
Roller shutters with manual control system: mini belt roller, white or brown, is available as a standard.
Download technical drawings
