Front-mounted Aluprof
Front-mounted Aluprof roller shutters
Front-mounted roller shutters are an ideal solution for the already existing buildings. They may be used on almost every façade. A great asset for a costumer is user-friendly maintenance of roller shutter, done on the outer side of the building. Another merit is its high-class resistance to burglary. Roller shutter boxes are fully visible on the façade and may be used as an interesting complementation of architectural project. Aluprof system offers a vast variety of boxes - smart half-rounded, classical, cut at 45 degrees angle and a fanciful box with a 45 degrees angle rounded shape.
Custom sized front-mounted roller shutters
Roller shutters in Aluprof system are adjusted to various windows sizes. Depending on the chosen model, the final size balances between 7,2 and 9,0 m2.
Front-mounted roller shutters with insect screen
Aluprof front-mounted roller shutters are also available with the insect screen. The grey-colored screen places itself on the internal side of the curtain.
Producer of roller shutters Aluprof
Aluprof S.A. belongs to a leading European producers of aluminum systems for building industry. In the area, of a size close to 80.000 m2, high-tech production lines of profiles and roller shutter boxes and modern, fully-automated line for powder coating are located.

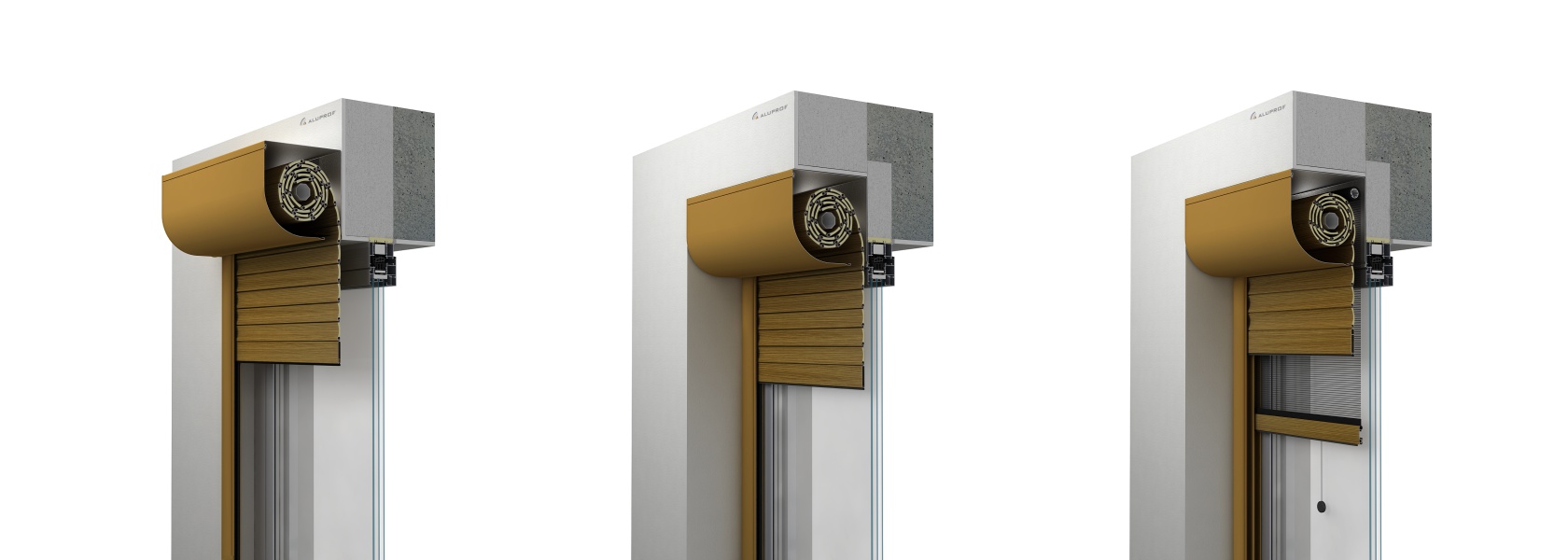

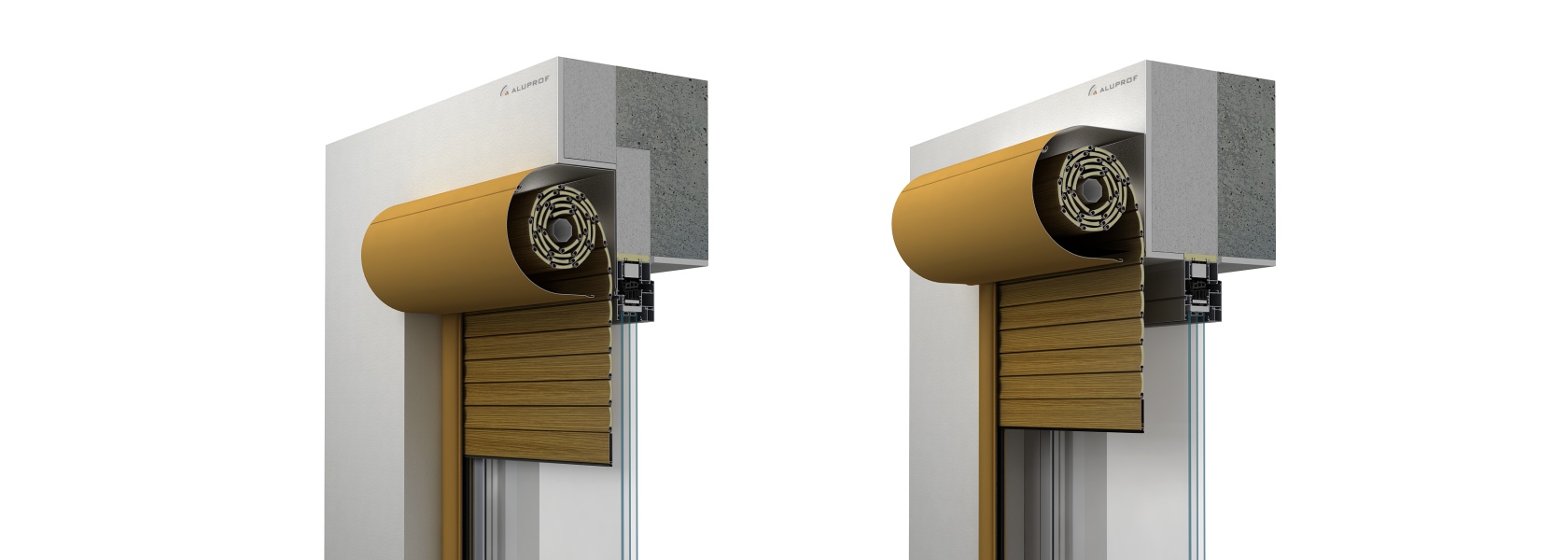

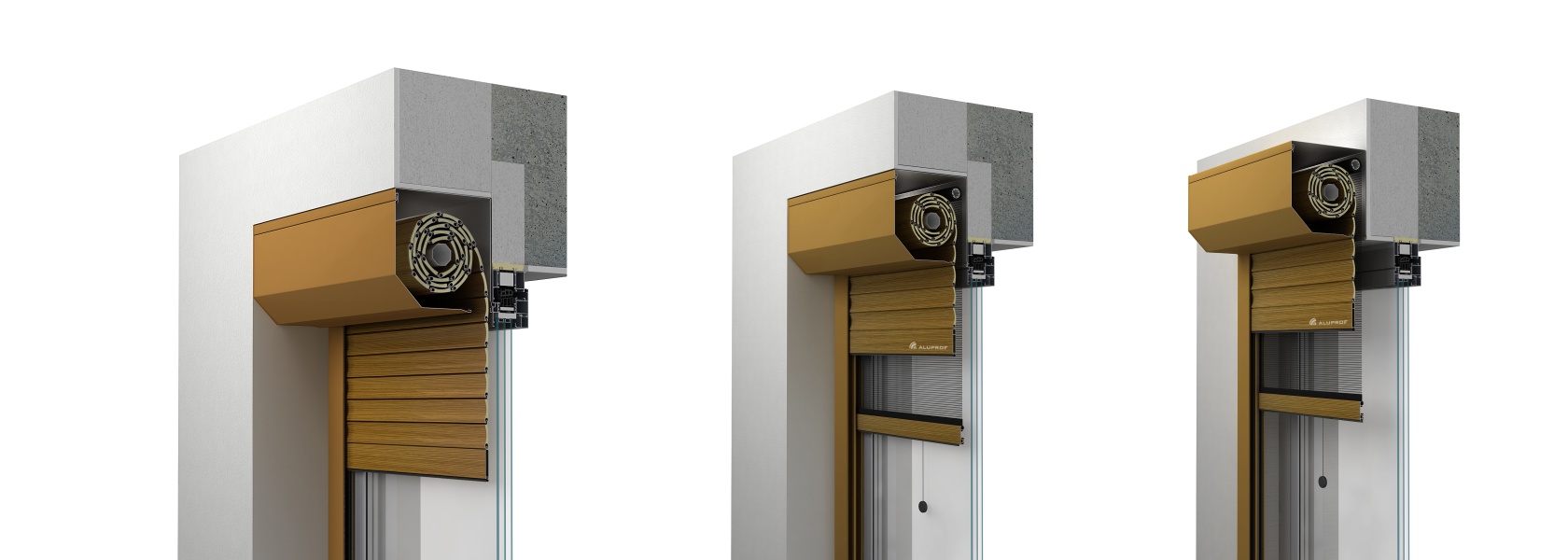

STANDARD 45°
HALF-ROUNDED
HALF-ROUNDED
Roller shutter type
front-mounted
front-mounted
front-mounted
Inspection cover
front of the box
front of the box
front of the box
Box
oblique shape 45°, alu
half-rounded shape, alu
rounded shape, alu
Box: w x h (mm)
137x137, 150x150, 165x165, 180x180, 205x205
Box with insect screen: w x h (mm)
165x165, 180x180, 205x205
Curtain
Aluprof
Aluprof
Aluprof
Guides
alu
alu
alu
Insect screen
possible integration
possible integration
possible integration
Due date
from 2 weeks
from 2 weeks
from 2 weeks
Curtain coloring
Aluprof, RAL colors
Aluprof, RAL colors
Aluprof, RAL colors
Box and guides coloring
Aluprof, RAL colors
Aluprof, RAL colors
Aluprof, RAL colors
Certificate
CE
CE
CE
Roller shutter curtains
Control systems
Roller shutters with manual control system: mini belt roller, white or brown, is available as a standard.
Download technical drawings
Front-mounted Aluprof roller shutters
Front-mounted roller shutters are an ideal solution for the already existing buildings. They may be used on almost every façade. A great asset for a costumer is user-friendly maintenance of roller shutter, done on the outer side of the building. Another merit is its high-class resistance to burglary. Roller shutter boxes are fully visible on the façade and may be used as an interesting complementation of architectural project. Aluprof system offers a vast variety of boxes - smart half-rounded, classical, cut at 45 degrees angle and a fanciful box with a 45 degrees angle rounded shape.
Custom sized front-mounted roller shutters
Roller shutters in Aluprof system are adjusted to various windows sizes. Depending on the chosen model, the final size balances between 7,2 and 9,0 m2.
Front-mounted roller shutters with insect screen
Aluprof front-mounted roller shutters are also available with the insect screen. The grey-colored screen places itself on the internal side of the curtain.
Producer of roller shutters Aluprof
Aluprof S.A. belongs to a leading European producers of aluminum systems for building industry. In the area, of a size close to 80.000 m2, high-tech production lines of profiles and roller shutter boxes and modern, fully-automated line for powder coating are located.
STANDARD 45° | HALF-ROUNDED | HALF-ROUNDED | |
Roller shutter type | front-mounted | front-mounted | front-mounted |
Inspection cover | front of the box | front of the box | front of the box |
Box | oblique shape 45°, alu | half-rounded shape, alu | rounded shape, alu |
Box: w x h (mm) | 137x137, 150x150, 165x165, 180x180, 205x205 | ||
Box with insect screen: w x h (mm) | 165x165, 180x180, 205x205 | ||
Curtain | Aluprof | Aluprof | Aluprof |
Guides | alu | alu | alu |
Insect screen | possible integration | possible integration | possible integration |
Due date | from 2 weeks | from 2 weeks | from 2 weeks |
Curtain coloring | Aluprof, RAL colors | Aluprof, RAL colors | Aluprof, RAL colors |
Box and guides coloring | Aluprof, RAL colors | Aluprof, RAL colors | Aluprof, RAL colors |
Certificate | CE | CE | CE |
Roller shutter curtains
Control systems
Roller shutters with manual control system: mini belt roller, white or brown, is available as a standard.
